Dome Tweeter with Composite Diaphragm — Frequency-Domain Response
Application ID: 126681
Loudspeaker design is a challenging task, where the design objective is to achieve better sound quality without violating manufacturing and operational constraints. The quality of sound depends on many parameters; one of them is the ability to control, damp, and shift the diaphragm resonance; another is to control the diaphragm breakup.

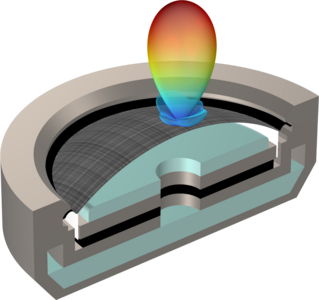

In this example the frequency response of a dome tweeter with different diaphragm materials is compared. The frequency response of the composite materials is smoother compared to conventional diaphragm materials like titanium. The ability of composites to break the symmetries in mode shapes and shift resonance can improve the frequency response of a dome tweeter.
This model example illustrates applications of this type that would nominally be built using the following products:
however, additional products may be required to completely define and model it. Furthermore, this example may also be defined and modeled using components from the following product combinations:
- COMSOL Multiphysics® and
- Acoustics Module and
- Composite Materials Module and
- either the MEMS Module, or Structural Mechanics Module and
- either the AC/DC Module, Battery Design Module, MEMS Module, Plasma Module, RF Module, or Semiconductor Module
The combination of COMSOL® products required to model your application depends on several factors and may include boundary conditions, material properties, physics interfaces, and part libraries. Particular functionality may be common to several products. To determine the right combination of products for your modeling needs, review the Tabella delle Funzionalità and make use of a free evaluation license. The COMSOL Sales and Support teams are available for answering any questions you may have regarding this.
