Touchscreen Simulator
Application ID: 30841

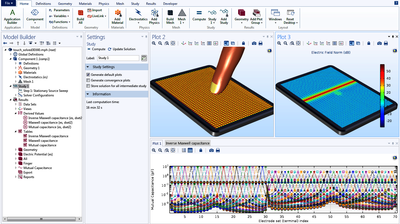

Intended as a tool for early proof of concept in capacitive touchscreen device development, the Touchscreen Simulator app evaluates a simulated capacitance matrix as well as the electric field norm.
The app computes the capacitance matrix of a touchscreen in the presence of a human finger phantom, where the position and orientation of the finger are controlled via input parameters. This includes electrode unit cell array size, the finger location, angle and touch level, the substrate and superstrate thicknesses and their material properties.
This application example illustrates applications of this type that would nominally be built using the following products:
however, additional products may be required to completely define and model it. Furthermore, this example may also be defined and modeled using components from the following product combinations:
- COMSOL Multiphysics® and
- CAD Import Module and
- either the AC/DC Module, MEMS Module, Plasma Module, or Semiconductor Module
The combination of COMSOL® products required to model your application depends on several factors and may include boundary conditions, material properties, physics interfaces, and part libraries. Particular functionality may be common to several products. To determine the right combination of products for your modeling needs, review the Tabella delle Funzionalità and make use of a free evaluation license. The COMSOL Sales and Support teams are available for answering any questions you may have regarding this.
