Assessment of Squeeze-off Location for Small Diameter Polyethylene (PE) Pipe and Tubing

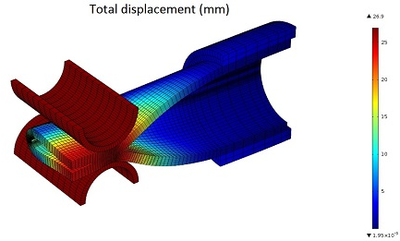

This poster showcases a fully parametric, nonlinear, time-dependent polyethylene (PE) pipe squeeze-off model that was developed in COMSOL Mulitphysics® software by the Gas Technology Institute (GTI) and Veryst Engineering, and sponsored by Operations Technology Development (OTD). Utilizing the Nonlinear Structural Materials Module and a custom viscoelastic-plastic constitutive model developed specifically for pipe-grade PE, the COMSOL model is capable of simulating the very large deformations encountered in squeeze-off of PE pipe, and well as capturing stress relaxation and residual plastic deformation. The COMSOL model was successfully used to assess the viability of performing squeeze-offs at distances from a fitting that are shorter than the currently acceptable minimum of 12-inch. Empirical testing is ongoing to verify the simulation results.
Download
- lever_presentation.pdf - 1.65MB
- lever_poster.pdf - 0.65MB
- lever_paper.pdf - 0.58MB
- lever_abstract.pdf - 0.26MB
