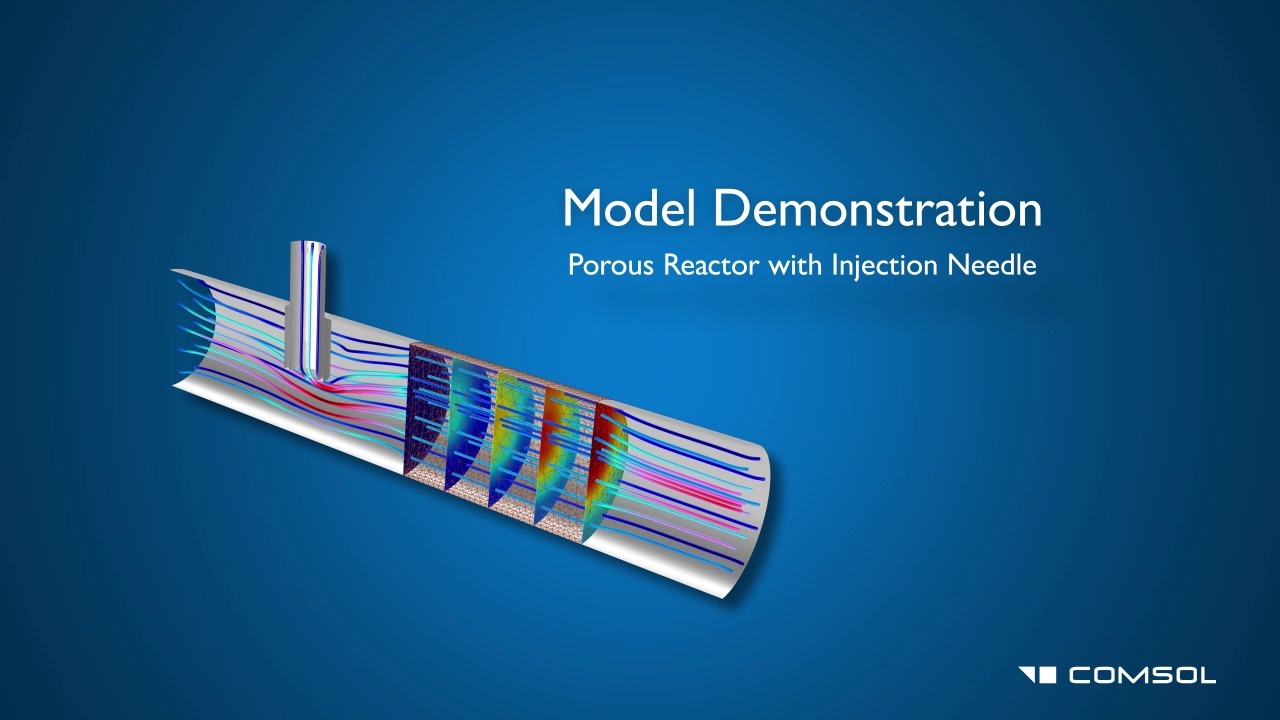

Modeling Reacting Flow in Porous Media

In this demonstration, we will open the “Porous Reactor” model from the Model Library, located under the Chemical Reaction Engineering Module. We will then look at the governing equations that define the model, and modify different aspects such as the geometry and the results.

Let’s first take a look at the basic modeling steps to set up the model. A parameter has been created for the temperature throughout the model, and three variables have been created in the Variables table for the reaction rate, the frequency factor, and the activation energy, all to be used later in the model. The geometry used to build the model is available for inspection and modification by the user, and the materials are easily available for inspection. Nitrogen is the carrier gas in the model and its properties are used to define the flow and transport.

This model will consider the following transport phenomena properties. The free flow channel is modeled with the Navier-Stokes equations and the porous media domain includes the Brinkman equation, an extension of the Navier-Stokes equations. The mass transport properties are defined through diffusion and convection with chemical reaction kinetics. Finally, heat transfer is not involved in this reaction, so we assume isothermal conditions.

In this model, the Chemical Reaction Engineering Module simulates the flow inside the reactor using the physics interface “Reacting Flow in Porous Media,” which supports both free-flow and porous-media domains.

The Transport Properties node defines the fluid flow throughout the model. It uses the Navier-Stokes equations, in order to account for the flow properties, which requires inputs for the temperature, the absolute pressure, the density, and the dynamic viscosity, as well as inlet velocity profiles for each of the species. These can be created from the Physics tab in the ribbon.

The mass transport properties are also defined in the Transport Properties node through diffusion and convection. This requires inputs for the reaction rate variable, which we defined earlier in the Variables table as k, for the concentrations which are defined in the inflow nodes, and for the diffusivity which is defined in the Transport Properties node by the user.

The Porous Matrix Properties node defines the fluid flow throughout the bed, and uses the Brinkman equation, which is an extension of the Navier-Stokes Equation. The Brinkman equation includes the porosity and the permeability of the porous media, which are again, specified the user.

The Reactions node is used to account for the consumption of species A and B, and the production of species C. It does so using the reaction rate variable we defined earlier, and the concentrations of species A and species B.

Processes like this that include both fluid flow and mass transport are often best suited by using a hybridized mesh, which can utilize different elements. By selecting user controlled mesh and clicking through the sizes, we can visualize the different meshes that are used. In this model, a boundary layer mesh is used to resolve the field close to the walls, and a free tetrahedral mesh is used to solve the field elsewhere.

At this point, we will move onto the results. After the simulation has been run, COMSOL Multiphysics automatically produces three dimensional results of the velocity, the pressure drop in the reactor, and the concentration of species A, where the effect of the porous media is apparent. In this case, the velocity is better seen by adding a surface plot in order the change in the velocity over the reactor.

By duplicating the Concentration plot twice, we can easily view the concentrations of both species B and species C. By opening the Surface node, and changing the expression to c underscore B and clicking plot we can see the concentration of species B. We will then do the same for species C in the other concentration plot. As you can see, the concentration of species C in the porous media is not evenly distributed. This suggests that the injection needle is placed too close to the reacting bed, which doesn’t allow proper mixing of species A and species B before reaching the catalyst. To view this in a different way, we will select results, and add a 1D Plot Group. At this point, we will select line graph, and select the inlet of the porous media. We will now go to the expression and add the total rate expression for species C, and click plot. This cross-sectional plot shows the non-uniform rate with which species C is produced due to the uneven mixing of species A and B.

At this point, we can easily change the geometry of the model in order to move the needle further from the catalyst bed. By going into the geometry and setting the position of the injection needle from three millimeters to one millimeter along the x-axis and then clicking build all objects, you can see that the needle moves along the model. I will now click compute to re-run the study and fast-forward through the simulation. Once the simulation is finished being run, we can easily see that the concentration of species C is much more evenly distributed and we can click on the line graph to confirm this. As you can see, it has a much more evenly distributed rate across the bed reactor at which species C is produced.
