solve dispersion curve of graphene with eigen-frequency solver
Posted 11 gen 2016, 07:01 GMT-5 Version 5.2a 2 Replies
Please login with a confirmed email address before reporting spam
Dear all,

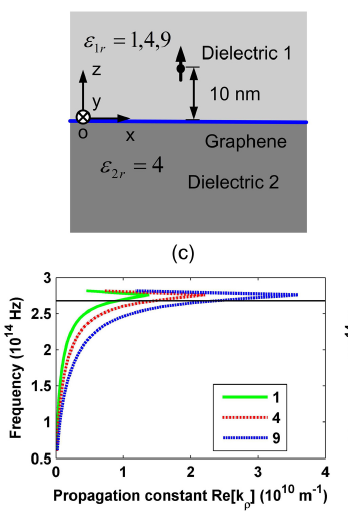

I am trying to get the dispersion curve of graphene in the dielectric/graphene/dielectric structure like ref.jpg.(only in x direction)
I use periodic BC on left-right side and set the floquet vector kx sweep and eigen-frequency solver to find the relationship of eigen-frequency and wave number kx.
Is it reseaonable? I cannot get the right result computed like ref.jpg.
Thank you!
Han
I am trying to get the dispersion curve of graphene in the dielectric/graphene/dielectric structure like ref.jpg.(only in x direction)
I use periodic BC on left-right side and set the floquet vector kx sweep and eigen-frequency solver to find the relationship of eigen-frequency and wave number kx.
Is it reseaonable? I cannot get the right result computed like ref.jpg.
Thank you!
Han
Attachments:
2 Replies Last Post 2 nov 2017, 09:29 GMT-4
Please login with a confirmed email address before reporting spam
Posted:
9 years ago
Hi everyone.

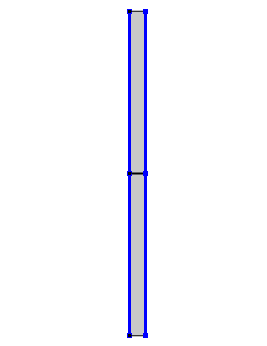

After some trying, I found that based on my model, if I change the width of the whole model, the result also changes. That is not a expect situation because I set the left-right side as periodic BC and it should be with the same result.
Really looking forward to someone's help
Han
After some trying, I found that based on my model, if I change the width of the whole model, the result also changes. That is not a expect situation because I set the left-right side as periodic BC and it should be with the same result.
Really looking forward to someone's help
Han
Please login with a confirmed email address before reporting spam
Posted:
7 years ago
Hi Han,
It's been long time, but did you manage to solve this problem? How did you get the dispersion curve plot?
Best,
