Displacement vs Frequency Graph

Posted 12 apr 2016, 01:08 GMT-4 Version 5.0 0 Replies

Gunjan Kumari
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Anyone would please tell me why my Displacement vs Frequency Graph is occuring like this? Please help me out. I'm applying edge load on piezoelectric cantilever beam and calculating the displacement.

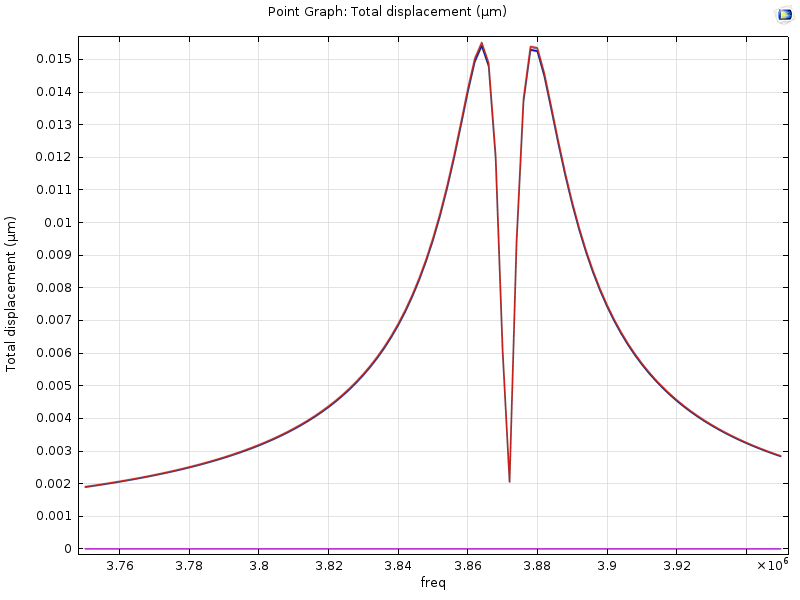

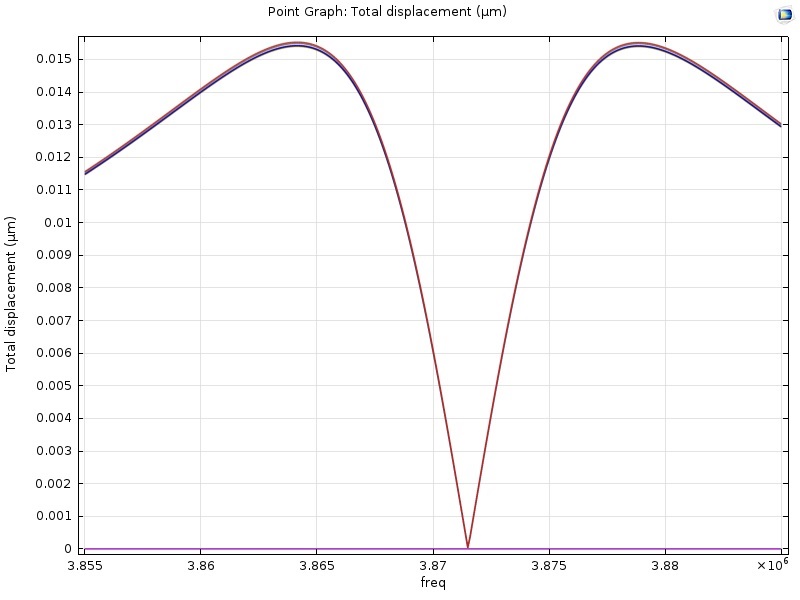

Here I'm attaching two graphs of different step size. (a). 2KHz (b). 0.1KHz
