Magnetization along the short axis of a magnet
Posted 27 apr 2016, 04:07 GMT-4 Low-Frequency Electromagnetics, Modeling Tools & Definitions, Parameters, Variables, & Functions Version 5.1 2 Replies
Please login with a confirmed email address before reporting spam
Hi!

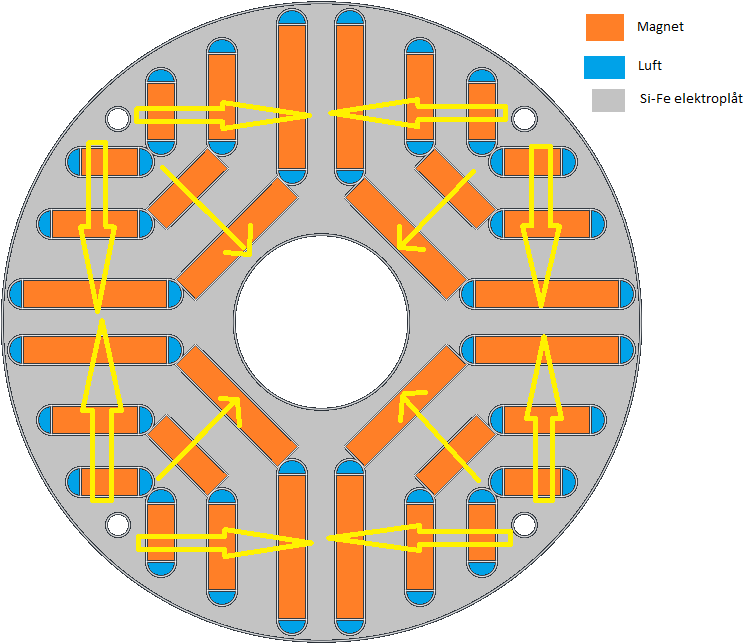

I am trying to simulate demagnetization of magnets in a rotor of an electric motor using the MF module. The magnets are supposed to be magnetized along their short axis, but it gives me the error
"Failed to find a solution.
Maximum number of Newton iterations reached.
Returned solution is not converged."
When i set the magnetization along their long axis everything works fine. I don't know why this is happening.
Any help is appreciated
I am trying to simulate demagnetization of magnets in a rotor of an electric motor using the MF module. The magnets are supposed to be magnetized along their short axis, but it gives me the error
"Failed to find a solution.
Maximum number of Newton iterations reached.
Returned solution is not converged."
When i set the magnetization along their long axis everything works fine. I don't know why this is happening.
Any help is appreciated
Attachments:
2 Replies Last Post 27 apr 2016, 08:32 GMT-4
Please login with a confirmed email address before reporting spam
Posted:
9 years ago
Martin,

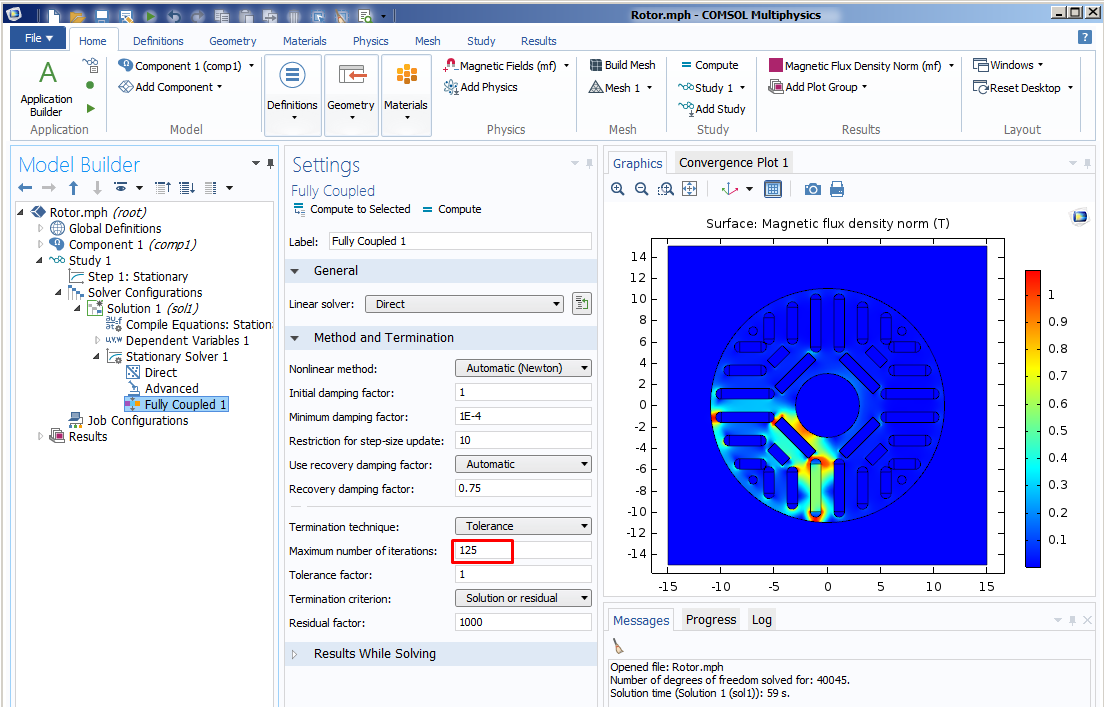

Increase maximum number of iterations for Fully Coupled solver and solution converges, as shown in the attached image.
Regards,
Sergei
Increase maximum number of iterations for Fully Coupled solver and solution converges, as shown in the attached image.
Regards,
Sergei
Attachments:
Please login with a confirmed email address before reporting spam
Posted:
9 years ago
Thanks alot!
It works now!
It works now!
