Is there any difference to build 1 domain and 2 domains with the same material in RF/wave optics module?
Posted 6 mag 2016, 01:57 GMT-4 RF & Microwave Engineering Version 5.2 0 Replies
Please login with a confirmed email address before reporting spam
I am trying to build a model to calculate a component's absorption. The component lays on Si and the wave incidents from air to Si.
I use periodic PC and 2 periodic ports to calculate it. But the result is far to my expect.

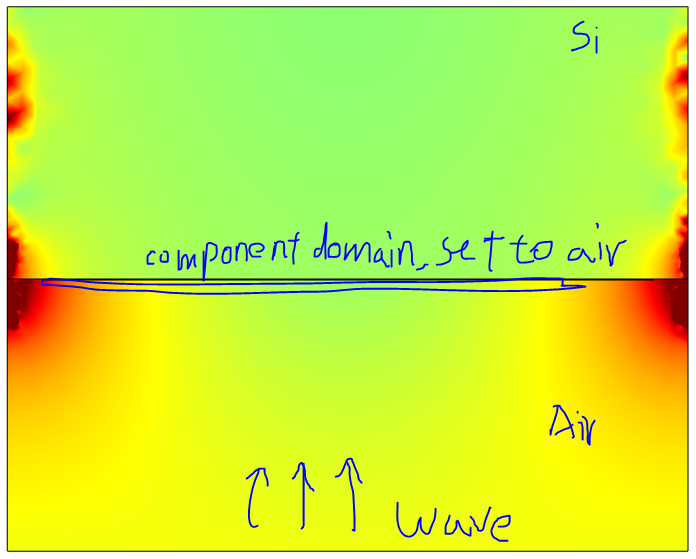

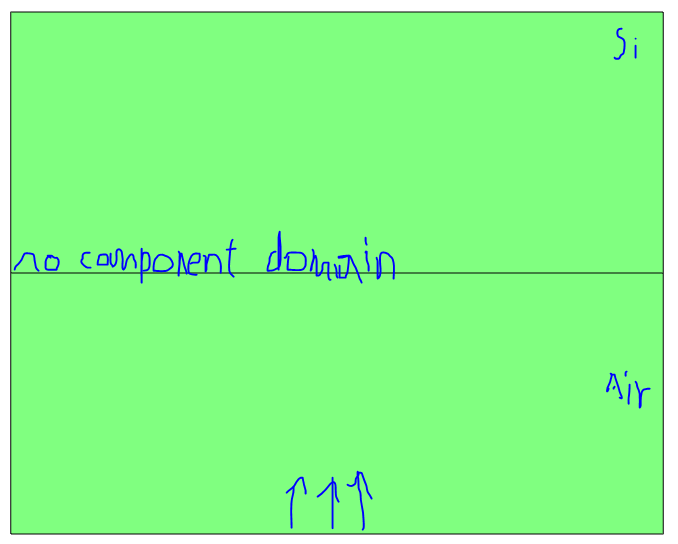

So I made a test. I found that, if I set the component's domain to air, the E-field is still not the same as there is no component's domain,as the pics attached.
Am I wrong to build the model? What should I to fix this problem?
Thank you!
