plasmonics

Posted 25 mag 2016, 00:23 GMT-4 RF & Microwave Engineering Version 5.2 0 Replies

Aparna U
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

hi everyone,

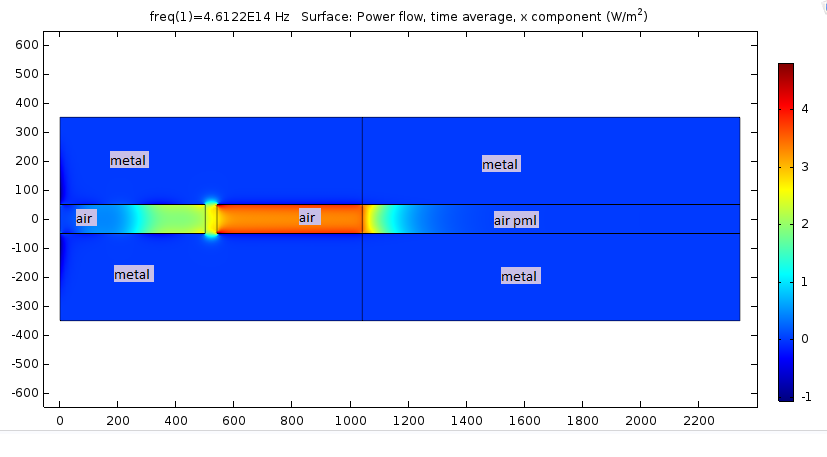

i have simulated MIM wave guide (air, gold) at wavelength 650nm using Comsol 5.2. coupling between 2 wave guides which are placed at a distance of 20nm is expected. SPP is propagating from left to right, but power in x direction as plotted shows max. power on right wave guide. is this result correct? if so what is the reason?
can any one help me?

thank you

Attachments:

0 Replies Last Post 25 mag 2016, 00:23 GMT-4
COMSOL Moderator

Hello Aparna U

Your Discussion has gone 30 days without a reply. If you still need help with COMSOL and have an on-subscription license, please visit our Support Center for help.

If you do not hold an on-subscription license, you may find an answer in another Discussion or in the Knowledge Base.

Note that while COMSOL employees may participate in the discussion forum, COMSOL® software users who are on-subscription should submit their questions via the Support Center for a more comprehensive response from the Technical Support team.
