Staircase waveform of negative Rampwave- How to achieve

Posted 24 ago 2016, 00:58 GMT-4 0 Replies

Nikita Bansal
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Hello everyone,

Can somebody guide me how to get a waveform, that is a staircase wave type, but the increasing steps do not consist of square wave, rather negative ramp wave.

Secondly, is a combination of two different waveforms possible to achieve a single special waveform?

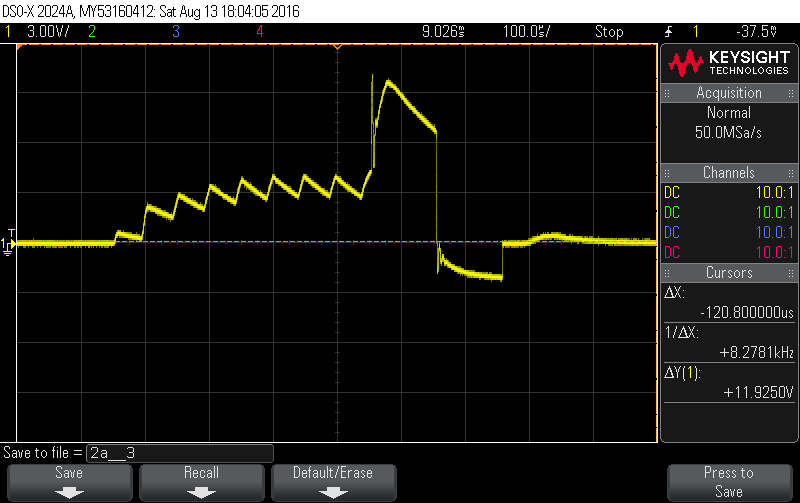

(I have attached the waveform picture that I target to achieve.)

Regards,
Nikita

Attachments:

0 Replies Last Post 24 ago 2016, 00:58 GMT-4
COMSOL Moderator

Hello Nikita Bansal

Your Discussion has gone 30 days without a reply. If you still need help with COMSOL and have an on-subscription license, please visit our Support Center for help.

If you do not hold an on-subscription license, you may find an answer in another Discussion or in the Knowledge Base.

Note that while COMSOL employees may participate in the discussion forum, COMSOL® software users who are on-subscription should submit their questions via the Support Center for a more comprehensive response from the Technical Support team.
