Can the position of the Legends in plot be moved?

Posted 8 feb 2011, 15:15 GMT-5 Results & Visualization Version 4.0, Version 4.2a 4 Replies

Xiaoyi Yu
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

I want to display the legends on the plot, but It seems that the Legends are always in the right-up corner of a plot, and sometimes the Legends will overlap part of the data curves. Can the position of the Legends in plot be moved? (I use v4.0)
4 Replies Last Post 13 ott 2014, 05:02 GMT-4
Ivar KJELBERG COMSOL Multiphysics(r) fan, retired, former "Senior Expert" at CSEM SA (CH)
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 1 decade ago 8 feb 2011, 15:18 GMT-5
Hiu

I'm not sure in 4.0, but in 4.1, in the main plot node you can select one of the 4 corners of the plot for the legend "box"

--
Good luck
Ivar
Hiu I'm not sure in 4.0, but in 4.1, in the main plot node you can select one of the 4 corners of the plot for the legend "box" -- Good luck Ivar
Jan Niklas Caspers
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 1 decade ago 17 feb 2012, 17:24 GMT-5
Hey

Does anybody knows if there is a way to have a few more options for the legend position? I.e. right center? My plot has data in all four corners.

-Niklas
Hey Does anybody knows if there is a way to have a few more options for the legend position? I.e. right center? My plot has data in all four corners. -Niklas
Ivar KJELBERG COMSOL Multiphysics(r) fan, retired, former "Senior Expert" at CSEM SA (CH)
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 1 decade ago 17 feb 2012, 17:34 GMT-5
Hi

not from my knowledge, I'm also miss a middle position, for many of my plots, at least in the height direction ;)

--
Good luck
Ivar
Hi not from my knowledge, I'm also miss a middle position, for many of my plots, at least in the height direction ;) -- Good luck Ivar
Simon Stubkier
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 1 decade ago 13 ott 2014, 05:02 GMT-4

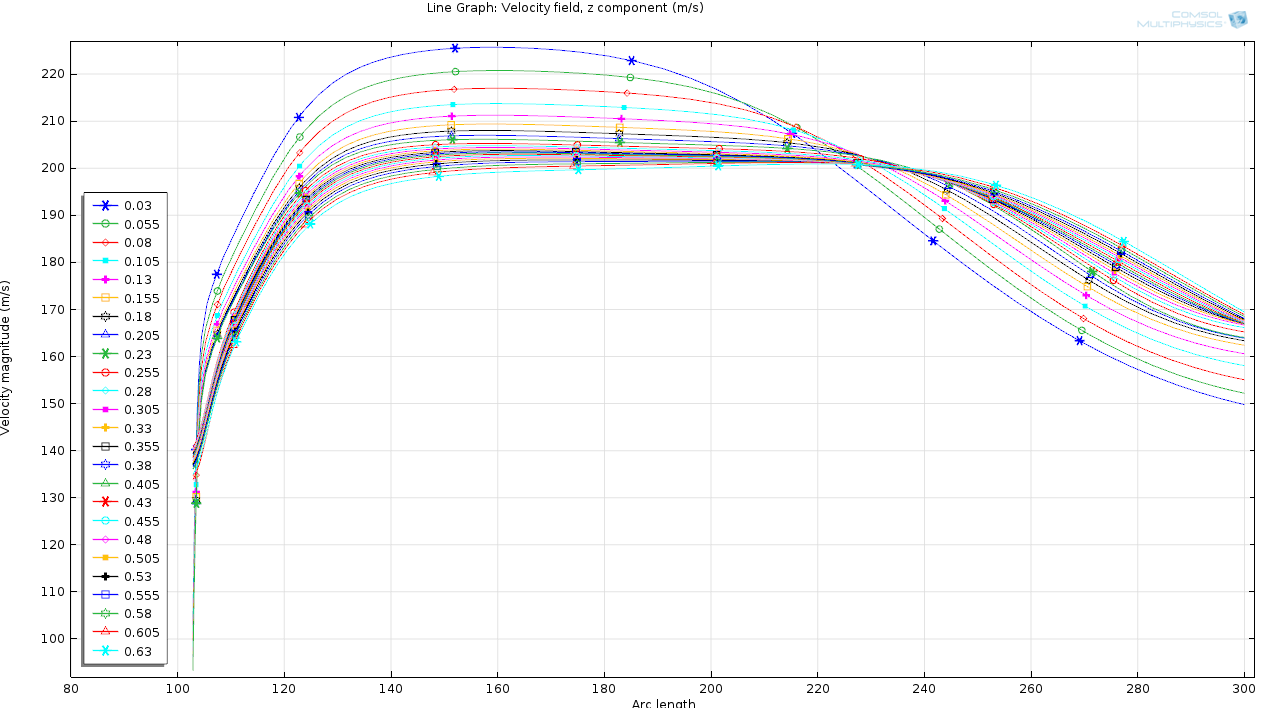

I know it is an old post - but I found a solution/workaround.

Simply make the scale on the X-axis longer. Then the legend will fit and it will not cover any of the data.
I know it is an old post - but I found a solution/workaround. Simply make the scale on the X-axis longer. Then the legend will fit and it will not cover any of the data.

Attachments:
