Two rollers and plate contact
Posted 27 apr 2017, 14:11 GMT-4 Structural Mechanics 2 Replies
Please login with a confirmed email address before reporting spam

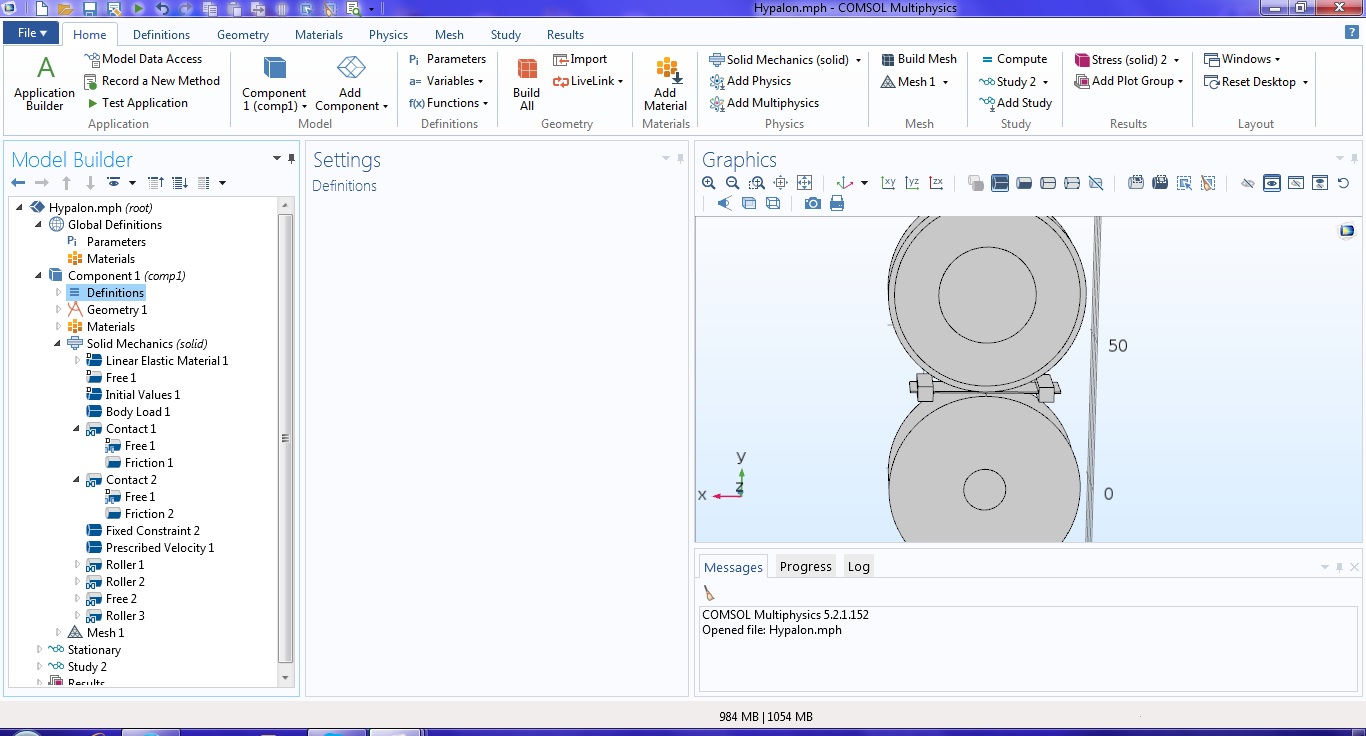

Hello everyone, i have been working on this for few months, maybe you can help me to solve this problem. I have two rollers and a plate between them, plate velocity 0.02m/s, and body load, from upper axis varies from 0 to 100 N. Using friction i need to calculate deformation of the plate along axis. I could not attach my model cos of the size error, so i will attach picture.
Attachments:
2 Replies Last Post 28 apr 2017, 01:03 GMT-4
Please login with a confirmed email address before reporting spam
Posted:
8 years ago
Dear sir,
Do you have build the geometry? I also do not know how to define the velocity ,we can have a talk about it .
Do you have build the geometry? I also do not know how to define the velocity ,we can have a talk about it .
Please login with a confirmed email address before reporting spam
Posted:
8 years ago
Hello everyone, i have been working on this for few months, maybe you can help me to solve this problem. I have two rollers and a plate between them, plate velocity 0.02m/s, and body load, from upper axis varies from 0 to 100 N. Using friction i need to calculate deformation of the plate along axis. I could not attach my model cos of the size error, so i will attach picture.
What is your question exactly? Are you unable to plot the deformation that you want or are you unsure of how to set up the problem? Your model file will be small enough to upload if you clear the solutions and then save it.
--
Nick
