Adding electrical circuit in 3D geometry

Posted 31 ago 2017, 10:59 GMT-4 Low-Frequency Electromagnetics Version 5.0 0 Replies

Shamor
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

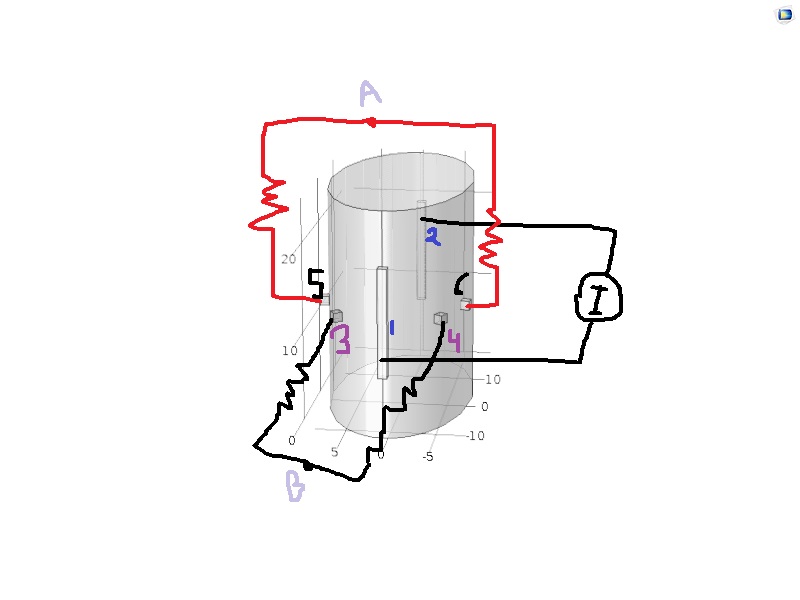

Hello everyone. I am shamor. I have made an elliptical shape geometry containing a fluid (conductivity 1.5). My geometry has two long electrode (for current carrying) and four small electrode (for potential measurement). Small electrodes will be shorted with resistor from outside. And I want to measure the potential between two nodes of shorted electrode. For that i have read "Inductor in an Amplifier Circuit" in detail from AC/DC application builder. But I have been facing some problem with geometry node and my Lt spice circuit node.
What should I do now? Is there any alternative literature about that problem?

Regards
Shamor
