Heat transfer thru different process steps
Posted 14 set 2017, 15:17 GMT-4 Structural & Acoustics, Heat Transfer & Phase Change, Heat Transfer Version 5.3 0 Replies
Please login with a confirmed email address before reporting spam
Hi!

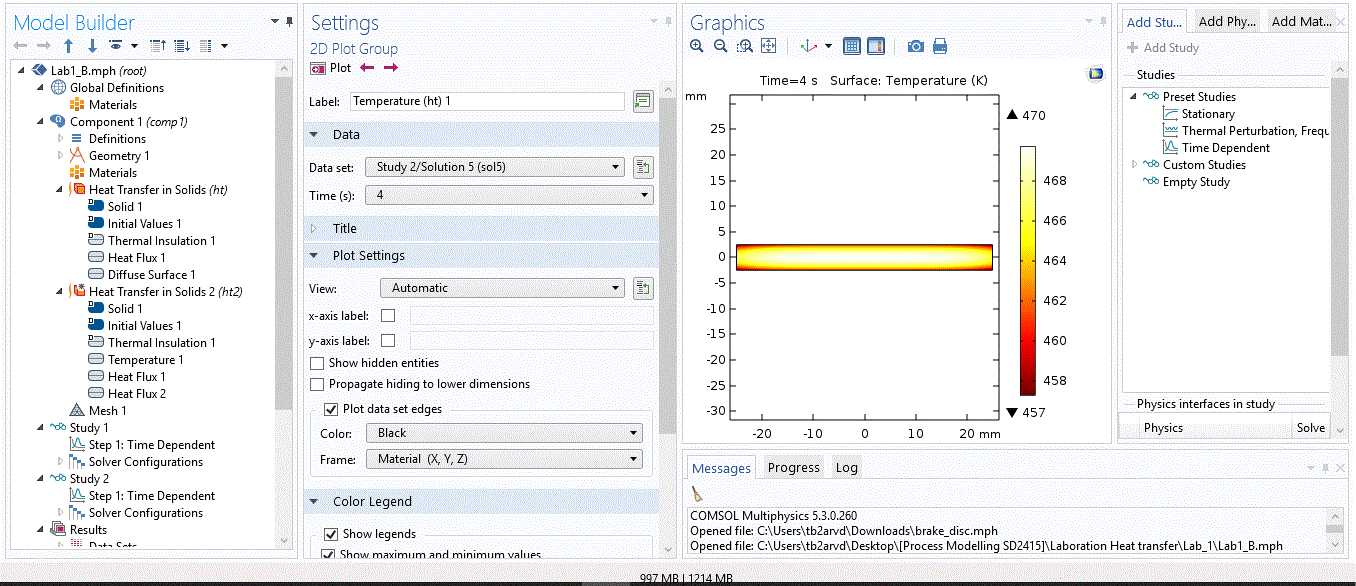

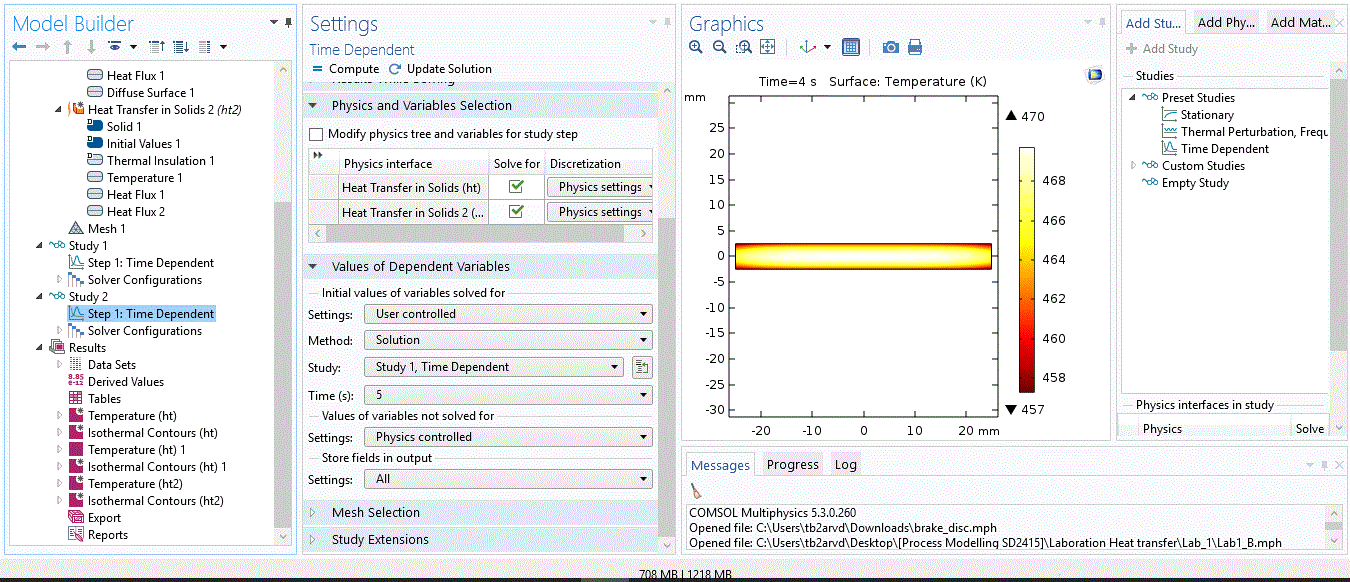

Im working with a process where a piece om material is taken out of a oven at a ceratin temperature, T. Then it experiences convenction and radiation during 5 sec, i call this step1. Then, in step2, where i put it in a mould which gives me different scenarios, for example, bottom surface has a boundary temperature, Tb and only convection on two sides. How do i connect the result from step1 to step2? As of now i have two different physics, "heat transfer in solids 1" and "heat transfer in solids 2", both with different boundaries etc, see attatched picture! I tried to have study 1 and study 2 and in study 2 get values from study 1 but didnt get it to work.
Attachments:
Hello Daniel Arvidsson
Your Discussion has gone 30 days without a reply. If you still need help with COMSOL and have an on-subscription license, please visit our Support Center for help.
If you do not hold an on-subscription license, you may find an answer in another Discussion or in the Knowledge Base.
