Plotting and producing similar structure inside COMSOL

Please login with a confirmed email address before reporting spam

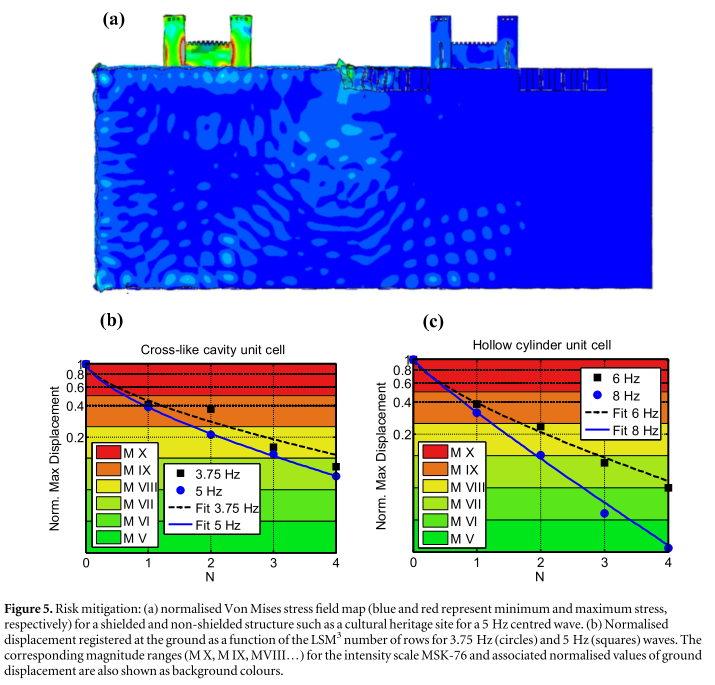

Dear Sir, I want to reproduce the simmilar result as attached with this message. Please check the attached file. I want to simulate total strucutre (Cultral heritage, Building etc) inside COMSOL by embedding array of metamaterials unit cells around the strucure as can be seen in picture attached. I don't know how I can produce geometry. About simulation I am not sure but I think Solid Mechanics module can produce simillar result using stress function but dont have proper idea how ? I also want to produce simillar plots shown in figure. Is it possible with COMSOL ? Please help me solving this issue. I shall be very thankful to you.

Thank You



0 Replies Last Post 2 nov 2017, 02:30 GMT-4
