Creating a face partition

Posted 11 gen 2018, 09:40 GMT-5 General, CAD Import & LiveLink™ Products for CAD, Geometry Version 5.3 1 Reply

Ismail Abubakar
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Hi Everyone and good afternoon!

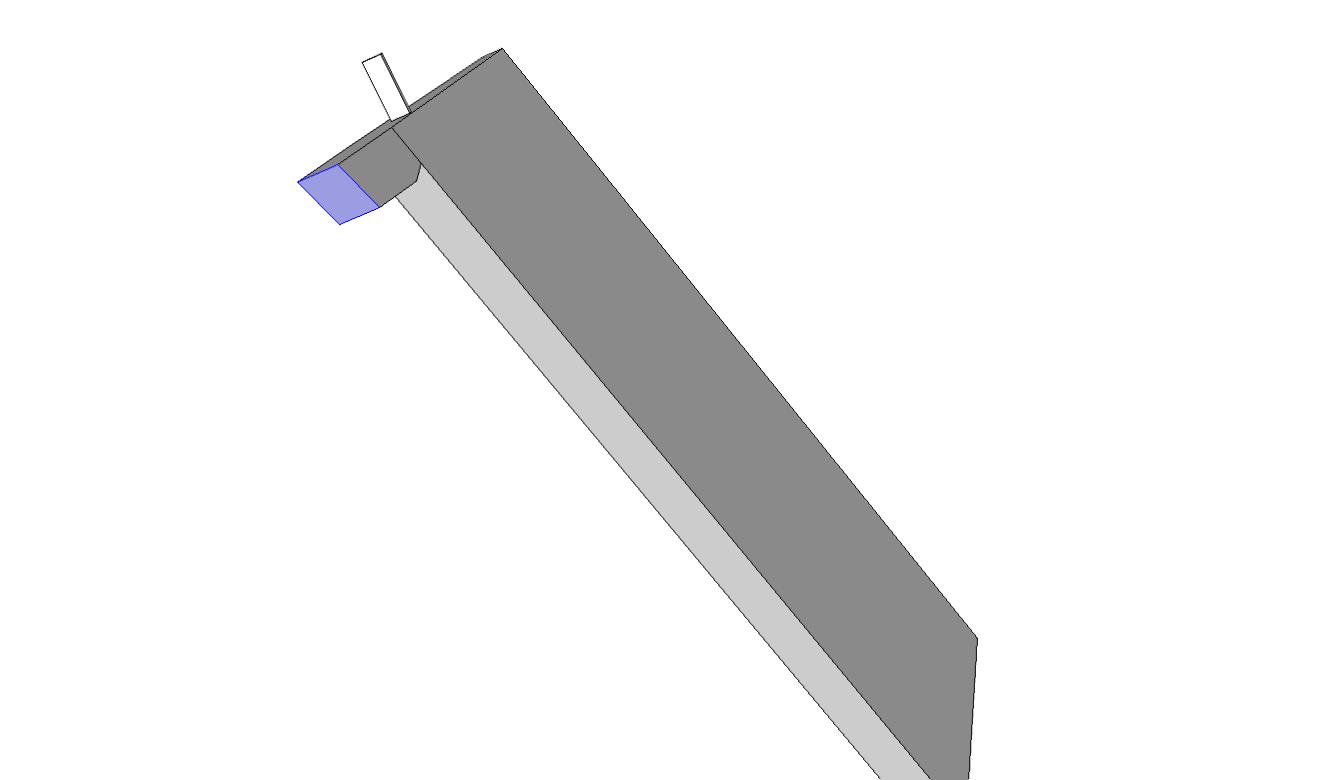

I am trying to make a face partition on a geometry in order to create a boundary condition, but I am struggling to get this done in COMSOL. Please find attached for a picture of my model showing the face I want to partition into two. I have also attached a .mph file of the model. A valuable help and guide will be well appreciated.

Kind Regards

Ismail

1 Reply Last Post 11 gen 2018, 16:50 GMT-5
Edgar J. Kaiser Certified Consultant
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 7 years ago 11 gen 2018, 16:50 GMT-5

Ismail,

you will need to add a feature that is suited to partition the face. This can be a workplane in case the cut has to be a straight line.

Cheers Edgar

-------------------
Edgar J. Kaiser
emPhys Physical Technology
www.emphys.com
Ismail, you will need to add a feature that is suited to partition the face. This can be a workplane in case the cut has to be a straight line. Cheers Edgar
