Infinite element domain parameters

Posted 20 feb 2018, 05:32 GMT-5 General, Geometry, Modeling Tools & Definitions 0 Replies

Liu Chang
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Does anyone know the meaning of two parameters, Physical Width and Pole Distance defined for infinite element domain? Or if possible, can anyone provide a reference?

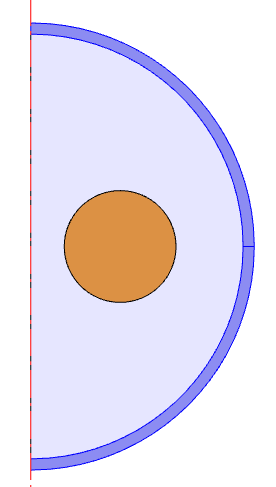

And the region for the infinite element as shown in the figure is generated automatically or I need to create a circle myself？ I use axissymmetric 2D and version 4.3

https://imgur.com/a/WoYJj Thanks!

Attachments:

0 Replies Last Post 20 feb 2018, 05:32 GMT-5
COMSOL Moderator

Hello Liu Chang

Your Discussion has gone 30 days without a reply. If you still need help with COMSOL and have an on-subscription license, please visit our Support Center for help.

If you do not hold an on-subscription license, you may find an answer in another Discussion or in the Knowledge Base.
