Extrude problem

Posted 28 apr 2018, 08:19 GMT-4 General, Geometry 2 Replies

Sherry
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Hello all,

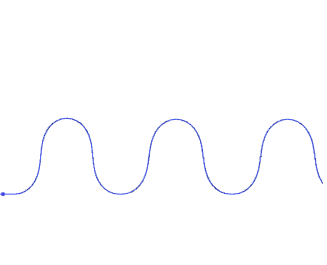

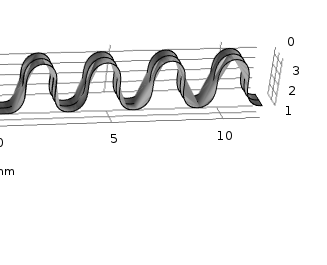

When I extrude a sinusoidal curve, I receive a jagged one with extra boundaries I don’t know how to get rid of them. I've also tried to change relative and absolute tolerances but there is no change yet. Could you please help me? I've attached two pictures for better understanding.

Many thanks

2 Replies Last Post 30 apr 2018, 08:00 GMT-4
Robert Koslover Certified Consultant
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 7 years ago 30 apr 2018, 00:36 GMT-4

I've seen figures like that before. I think you are simply seeing graphic artifacts. Try meshing the surface -- you might find that the jaggedness disappears (except for the usual mesh discreteness). Also, consider changing the graphics quality/resolution display settings under Preferences. You probably have it set at normal. Change it to fine, and take another look.

-------------------
Scientific Applications & Research Associates (SARA) Inc.
www.comsol.com/partners-consultants/certified-consultants/sara
I've seen figures like that before. I think you are simply seeing graphic artifacts. Try meshing the surface -- you might find that the jaggedness disappears (except for the usual mesh discreteness). Also, consider changing the graphics quality/resolution display settings under Preferences. You probably have it set at normal. Change it to fine, and take another look.
Sherry
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 7 years ago 30 apr 2018, 08:00 GMT-4

Dear Robert,

After meshing I cannot see any change yet. I've also changed the quality from normal to fine. What else do you suggest?

Kind regards

Dear Robert, After meshing I cannot see any change yet. I've also changed the quality from normal to fine. What else do you suggest? Kind regards
