Periodic boundary condition in a capacitor array

Please login with a confirmed email address before reporting spam

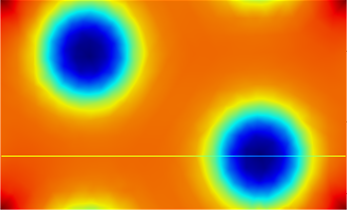

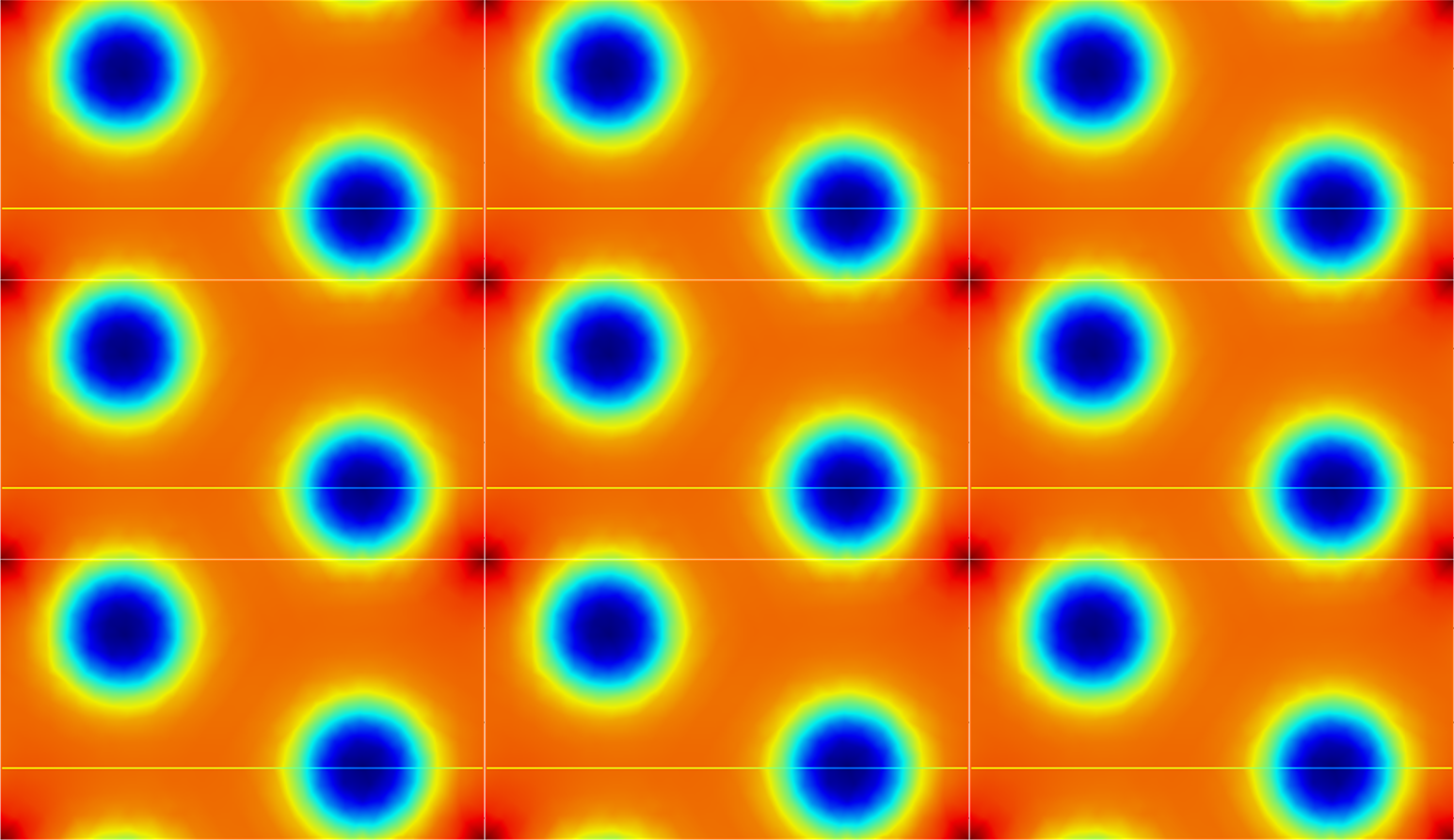

On the attached model, I applied the periodic continuity condition to the 2 pairs of sides of a capacitor. The shape of capacitor unit cell is rectangular with a couple of etched cylindrical holes in it, and the holes are placed in such a way to be arranged in a triangular pattern on the final periodic array. However, I get 4 regions of increased displacement field in the corners of the rectangular unit cell that can be seen on the attached image, which is the normal component of the displacement field (logically I do not expect them to be there when a periodic boundary condition is applied, since the symmetry of the final array is supposed to be triangular, not rectangular). Am I doing something wrong?



0 Replies Last Post 13 giu 2018, 09:44 GMT-4
COMSOL Moderator

Hello Sergei Posnov

Your Discussion has gone 30 days without a reply. If you still need help with COMSOL and have an on-subscription license, please visit our Support Center for help.

If you do not hold an on-subscription license, you may find an answer in another Discussion or in the Knowledge Base.

Note that while COMSOL employees may participate in the discussion forum, COMSOL® software users who are on-subscription should submit their questions via the Support Center for a more comprehensive response from the Technical Support team.
