Visualization Transparency

Posted 7 lug 2011, 09:59 GMT-4 Version 4.3b 3 Replies

Marcus
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Does anyone know how to control transparency of a particular plot?

For instance, I would like to show what is happening in the contact area of two bodies in contact, while simultaneously showing the two bodies.

Ideally, I could mirror the solution of the second body since it was solved as a symmetric problem. In this way, I could visualize both bodies and the contact area would not be hidden.

However, I would be content with just controlling transparency of the plot.

3 Replies Last Post 12 mar 2014, 18:18 GMT-4
Zoran Vidakovic, COMSOL COMSOL Employee

Please login with a confirmed email address before reporting spam

Posted: 1 decade ago 7 lug 2011, 12:31 GMT-4
Dear Marcus

Have a look here: www.ch.comsol.com/community/forums/general/thread/16157/

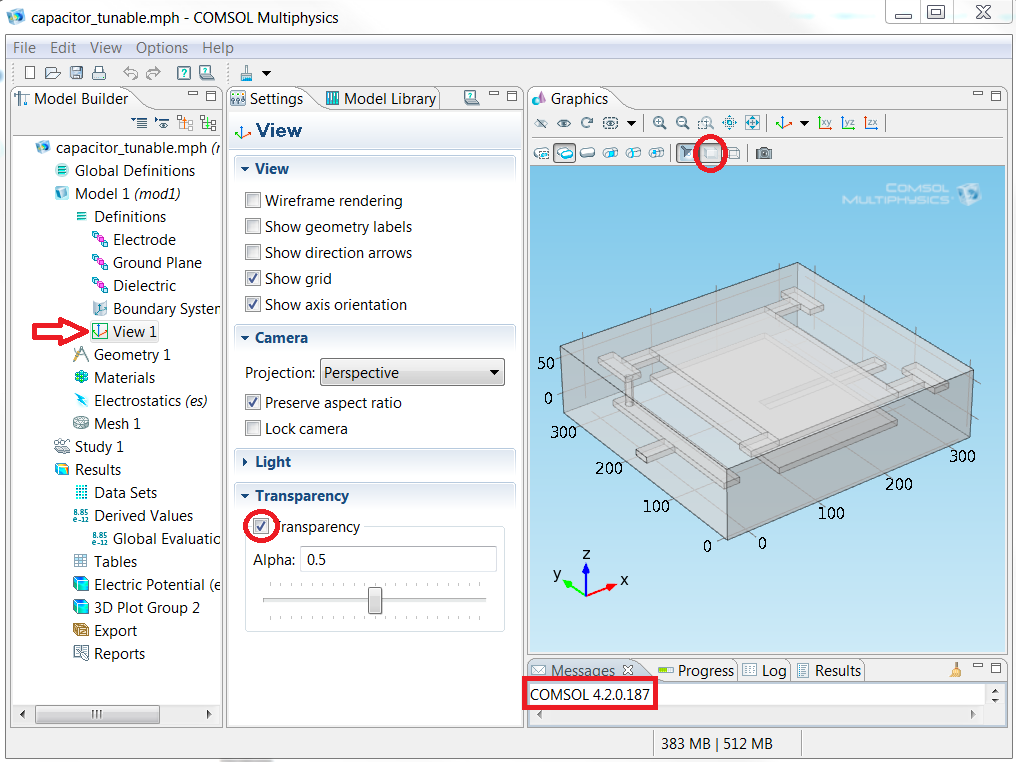

In addition, you can control the magnitude of the transparency under Model 1 > Definitions > View 1 (in 3D: see attached image).

I hope this helps!

Best regards,

Zoran
Dear Marcus Have a look here: http://www.ch.comsol.com/community/forums/general/thread/16157/ In addition, you can control the magnitude of the transparency under Model 1 > Definitions > View 1 (in 3D: see attached image). I hope this helps! Best regards, Zoran

Attachments:

Marcus
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 1 decade ago 8 lug 2011, 10:02 GMT-4
This is helpful for occluded geometry, but it does not affect the transparency of plotted solutions.

Perhaps I should have been more specific.





This is helpful for occluded geometry, but it does not affect the transparency of plotted solutions. Perhaps I should have been more specific.
Andrew Vamos
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 1 decade ago 12 mar 2014, 18:18 GMT-4
Does anyone know the solution to this? I am having the same issue - I can have transparencies when viewing the model geometry, but not when plotting results.
Does anyone know the solution to this? I am having the same issue - I can have transparencies when viewing the model geometry, but not when plotting results.
