Export Comsol Simulation result to Comsol geometry
Posted 14 gen 2019, 03:59 GMT-5 Heat Transfer & Phase Change, Heat Transfer Version 5.4 1 Reply
Please login with a confirmed email address before reporting spam
Hello,
assuming I have a stationary heat transfer simulation with some arbitrary boundary conditions.
What I want to have is the polygon tracing the interface layer between elements that are of phase 1 (i.e. of which the average temperature is above a certain temperature) and elements that are of phase 2 (i.e. of which the average temperature is below a certain temperature) as a geometry in the Geometry definition of the component of a new model (or the same) to use it for a second different simulation.

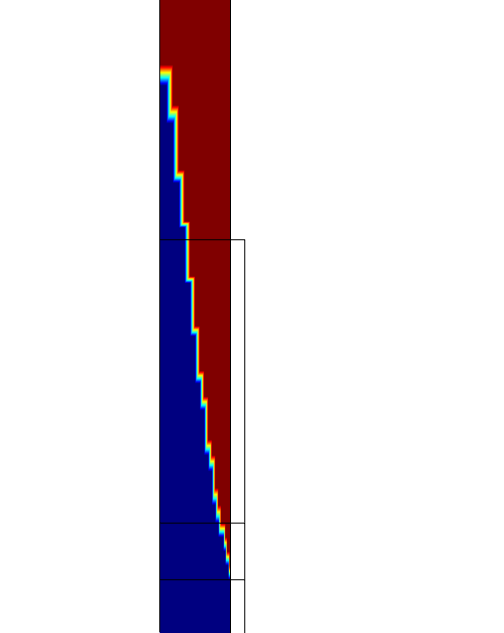

I already fail to export data like that to any kind of format, not to mention COMSOL geometry. The only thing I get with Attribute "Phase Change" with ΔT = 1E-9 and
(can't put exactly zero) is a nice indication of the phase change in the output plot, see attachmenent.
Is there a way to do this? Is there a general way to export the outline of elements which have a specific property?
Thanks for your help!
Achim
Attachments:
Please login with a confirmed email address before reporting spam
Hello Achim,
Have you tried the approach presented in this blog post ?
Best,
Jeff
-------------------Jeff Hiller
