Drawing 3D geometry
Posted 20 ott 2011, 15:29 GMT-4 1 Reply
Please login with a confirmed email address before reporting spam
Hello,

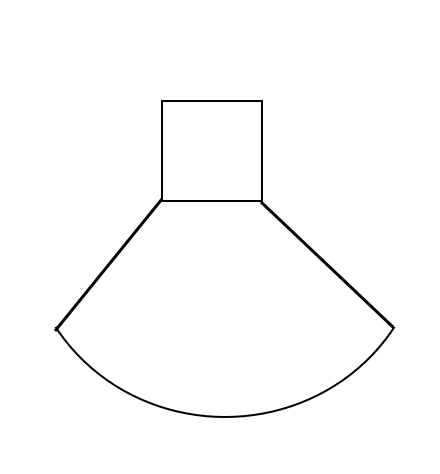

I am trying to draw a 3D chamber coming from a rectangular channel. The 3D chamber would be an extrusion of an arc of a circle as in the picture file shown below. I am kind of clueless to even know how to start drawing the arc in a separate work plane from the rectangular channel. Any help is appreciated.
I am trying to draw a 3D chamber coming from a rectangular channel. The 3D chamber would be an extrusion of an arc of a circle as in the picture file shown below. I am kind of clueless to even know how to start drawing the arc in a separate work plane from the rectangular channel. Any help is appreciated.
Attachments:
1 Reply Last Post 21 ott 2011, 02:30 GMT-4
Please login with a confirmed email address before reporting spam
Posted:
1 decade ago
Hi
I would try to draw a circle and a triangle/trapeze and intersect both, then add the square, and extrude, eitheras one or in two steps, all depends what you are after
--
Good luck
Ivar
I would try to draw a circle and a triangle/trapeze and intersect both, then add the square, and extrude, eitheras one or in two steps, all depends what you are after
--
Good luck
Ivar
