helix with rectangular cross section.

Posted 27 ott 2011, 22:07 GMT-4 Geometry, Studies & Solvers Version 4.1, Version 5.2a 10 Replies

Jason Castro
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

hello

I need to know how to make a helical ribbon with rectangular cross-section.

thanks
10 Replies Last Post 27 mar 2017, 04:48 GMT-4
Vincent Zhang
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 1 decade ago 27 ott 2011, 22:32 GMT-4
Hi Jason:

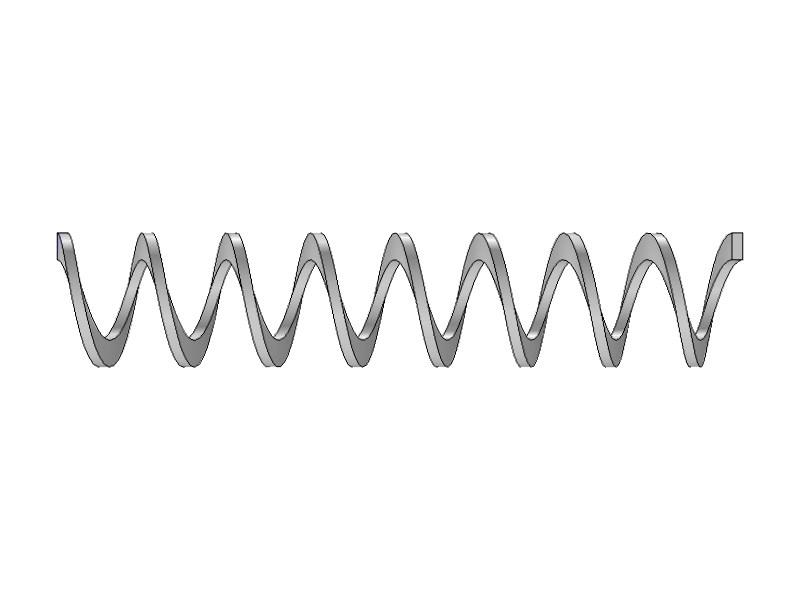

Is this what you want? I made it by sweep a rectangle with a helix. If yes, I can upload the model.
Hi Jason: Is this what you want? I made it by sweep a rectangle with a helix. If yes, I can upload the model.

Attachments:

Jason Castro
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 1 decade ago 27 ott 2011, 23:27 GMT-4
yes, is exactly that I need.
yes, is exactly that I need.
Jason Castro
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 1 decade ago 27 ott 2011, 23:38 GMT-4
thanks
thanks
Jason Castro
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 1 decade ago 9 nov 2011, 15:22 GMT-5
ohh!

I have a problem, I get the following message: "model created with a later version of comsol"

could you tell me how to make the helix? have you any tutorial?

ohh! I have a problem, I get the following message: "model created with a later version of comsol" could you tell me how to make the helix? have you any tutorial?
Vincent Zhang
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 1 decade ago 9 nov 2011, 20:32 GMT-5
Sorry for that. Below is how I made it.

First is create a rectangular in a work plane.
Second, make a parametric curve to represent the helix curve, like (cos(4*s),sin(4*s),s).
Last, sweep the rectangular with parametric curve. Pay attention to uncheck the "twist compensation".
Sorry for that. Below is how I made it. First is create a rectangular in a work plane. Second, make a parametric curve to represent the helix curve, like (cos(4*s),sin(4*s),s). Last, sweep the rectangular with parametric curve. Pay attention to uncheck the "twist compensation".
Jason Castro
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 1 decade ago 21 nov 2011, 21:37 GMT-5
Hi vincent

your explanation was very successful, check it.

But I have other problem, i cant do difference between a cylinder and the agitator because disappears the figure.
I tried make a difference with each element and I realized that it can be for the sweep. I m not sure, have you any idea.

Thanks

P.D: Im doing a reactor and i want use rotating machinery model
Hi vincent your explanation was very successful, check it. But I have other problem, i cant do difference between a cylinder and the agitator because disappears the figure. I tried make a difference with each element and I realized that it can be for the sweep. I m not sure, have you any idea. Thanks P.D: Im doing a reactor and i want use rotating machinery model

Attachments:

Michael Norton
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 1 decade ago 22 nov 2011, 12:20 GMT-5
I am having the same issue. Anytime I perform Boolean operations on an object created with sweep I get funny results - I think the surface normals are getting reversed on some of the faces. I sent a message into support, I'll post any fixes they are able to suggest.
I am having the same issue. Anytime I perform Boolean operations on an object created with sweep I get funny results - I think the surface normals are getting reversed on some of the faces. I sent a message into support, I'll post any fixes they are able to suggest.
Jason Castro
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 1 decade ago 22 nov 2011, 19:39 GMT-5
Im worried, I need it for finished my thesis.....Bad
Im worried, I need it for finished my thesis.....Bad
Muhammad Mohsin Rehman
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 1 decade ago 18 nov 2012, 07:51 GMT-5
Guys, have you solved the problem? If so, can you please post the solution?

Thanks..
Guys, have you solved the problem? If so, can you please post the solution? Thanks..
Jose Bellosta von Colbe
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 8 years ago 27 mar 2017, 04:48 GMT-4
Sorry to bother you with this; the posting is quite old but it is exactly what I need. However, I don't seem to get exactly the same in 5.2a as the image 123.png posted here. Would you mind posting a more detailed explanation on how to sweep the rectangle to get the helix and with which parameters you did it? I am a complete newbie and still have problems with basic things; sorry.

Thanks in advance,
Sorry to bother you with this; the posting is quite old but it is exactly what I need. However, I don't seem to get exactly the same in 5.2a as the image 123.png posted here. Would you mind posting a more detailed explanation on how to sweep the rectangle to get the helix and with which parameters you did it? I am a complete newbie and still have problems with basic things; sorry. Thanks in advance,
