How to model a magnet in comsol ?

Posted 3 giu 2019, 08:14 GMT-4 1 Reply

Hend Khedher
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

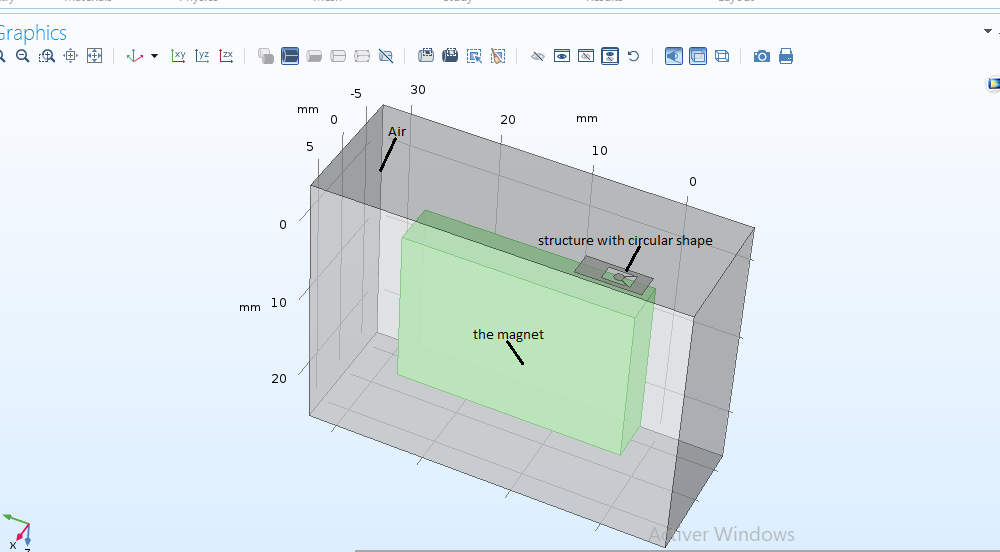

Hi, I am new to Comsol .I want to model a magnet with its two sides (north and south) ,in order to attract a simple shape built in Co-Ni material.In fact , I have to extract the necessary force that should pull the circular shape figured in the image bellow. If you have any tutorial or any information that can help ,please don't hesitate to leave me a comment. Thanks.

1 Reply Last Post 3 giu 2019, 09:28 GMT-4
Jeff Hiller COMSOL Employee

Please login with a confirmed email address before reporting spam

Posted: 5 years ago 3 giu 2019, 09:28 GMT-4
Updated: 5 years ago 3 giu 2019, 09:26 GMT-4

Hello Hend,

Check out the Application Gallery, which contains many tutorials, such as this one on how to model the force exerted by a permanent magnet on a nearby object.

Best regards,

Jeff

-------------------
Jeff Hiller
Hello Hend, Check out the Application Gallery, which contains many tutorials, such as this one on how to model the force exerted by a [permanent magnet](https://www.comsol.com/model/permanent-magnet-78) on a nearby object. Best regards, Jeff
