Surface plot of velocity in Comsol for a 2D flow case

Posted 17 lug 2019, 02:34 GMT-4 Computational Fluid Dynamics (CFD), Results & Visualization, Studies & Solvers 1 Reply

Aashna Raj
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

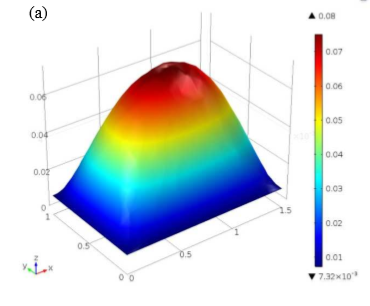

If I want to plot surface velocity profile in Comsol such that we have a plane on horizontal surface and variation of velocity is shown in vertical direction as if it appears to be a truncation, how to do that? I am attaching a similar figure of what I need to draw. If anyone has any idea regarding this, kindly help. Thanks.!

Attachments:

1 Reply Last Post 17 lug 2019, 17:21 GMT-4
Jeff Hiller COMSOL Employee

Please login with a confirmed email address before reporting spam

Posted: 5 years ago 17 lug 2019, 17:21 GMT-4
Updated: 5 years ago 17 lug 2019, 17:12 GMT-4

Hello Aashna,

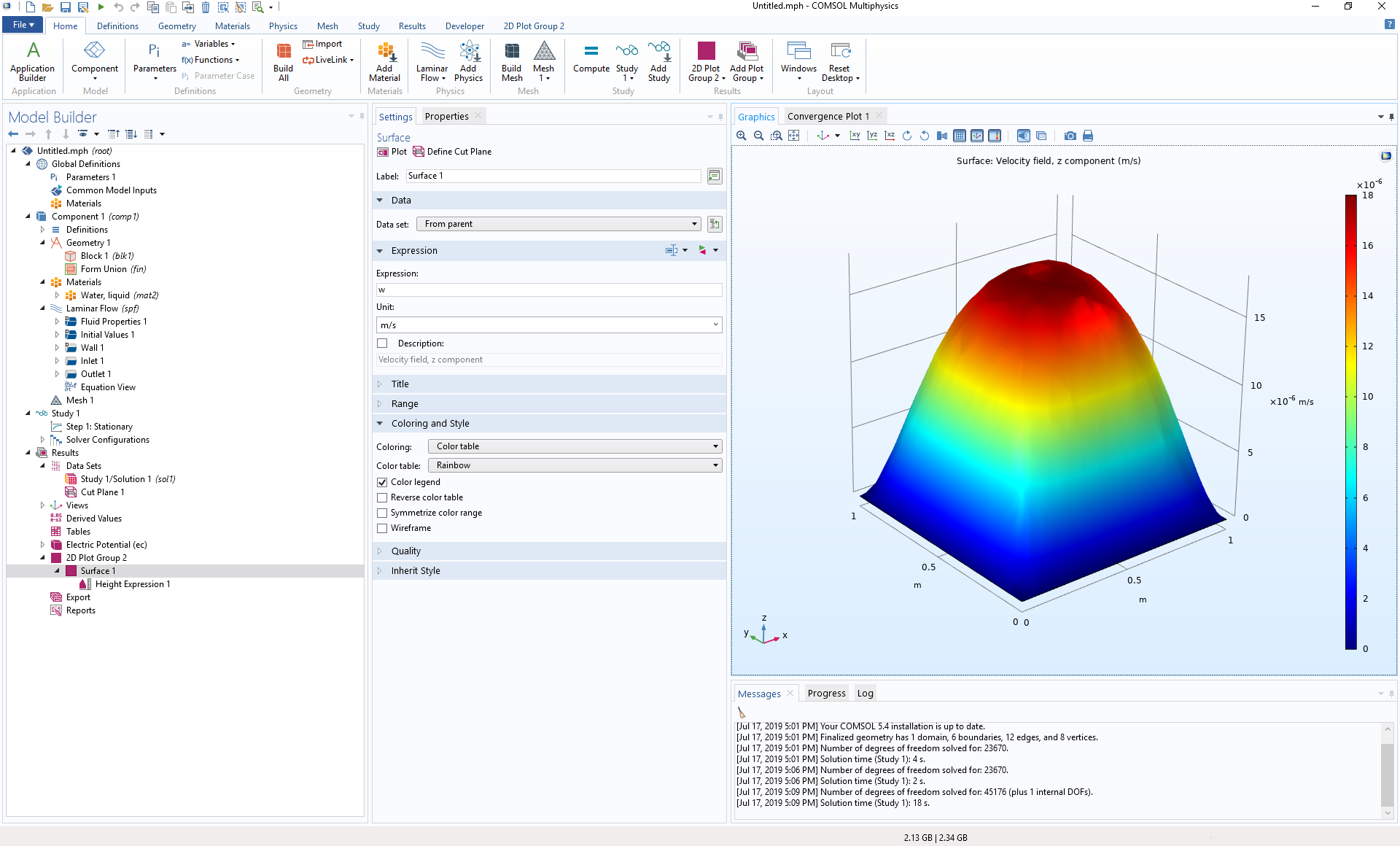

The following steps will do what you want, if I understand your intentions correctly. First, Create a dataset of the Cut Plane type at the desired location, then create a 2D Plot Group, add a Surface plot in that Plot Group, and add a Height Expression subnode to that Surface plot. See attached screenshot and mph file.

Best,

Jeff

-------------------
Jeff Hiller
Hello Aashna, The following steps will do what you want, if I understand your intentions correctly. First, Create a dataset of the Cut Plane type at the desired location, then create a 2D Plot Group, add a Surface plot in that Plot Group, and add a Height Expression subnode to that Surface plot. See attached screenshot and mph file. Best, Jeff

Note that while COMSOL employees may participate in the discussion forum, COMSOL® software users who are on-subscription should submit their questions via the Support Center for a more comprehensive response from the Technical Support team.
