Lines and surface of a geometry

Posted 11 ott 2019, 04:02 GMT-4 Version 5.4 1 Reply

Alfonso de la Vega
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Hi! I need to know if there's any place where all lines and surfaces of a geometry are saved. I need to do a selection of lines and it's difficult to do it manually. So I'd need the information about the lines and their beginning and ending points.

Thanks and regards. Alfonso

1 Reply Last Post 11 ott 2019, 04:06 GMT-4
Björn Bragée COMSOL Employee

Please login with a confirmed email address before reporting spam

Posted: 5 years ago 11 ott 2019, 04:06 GMT-4

Hello Alfonso,

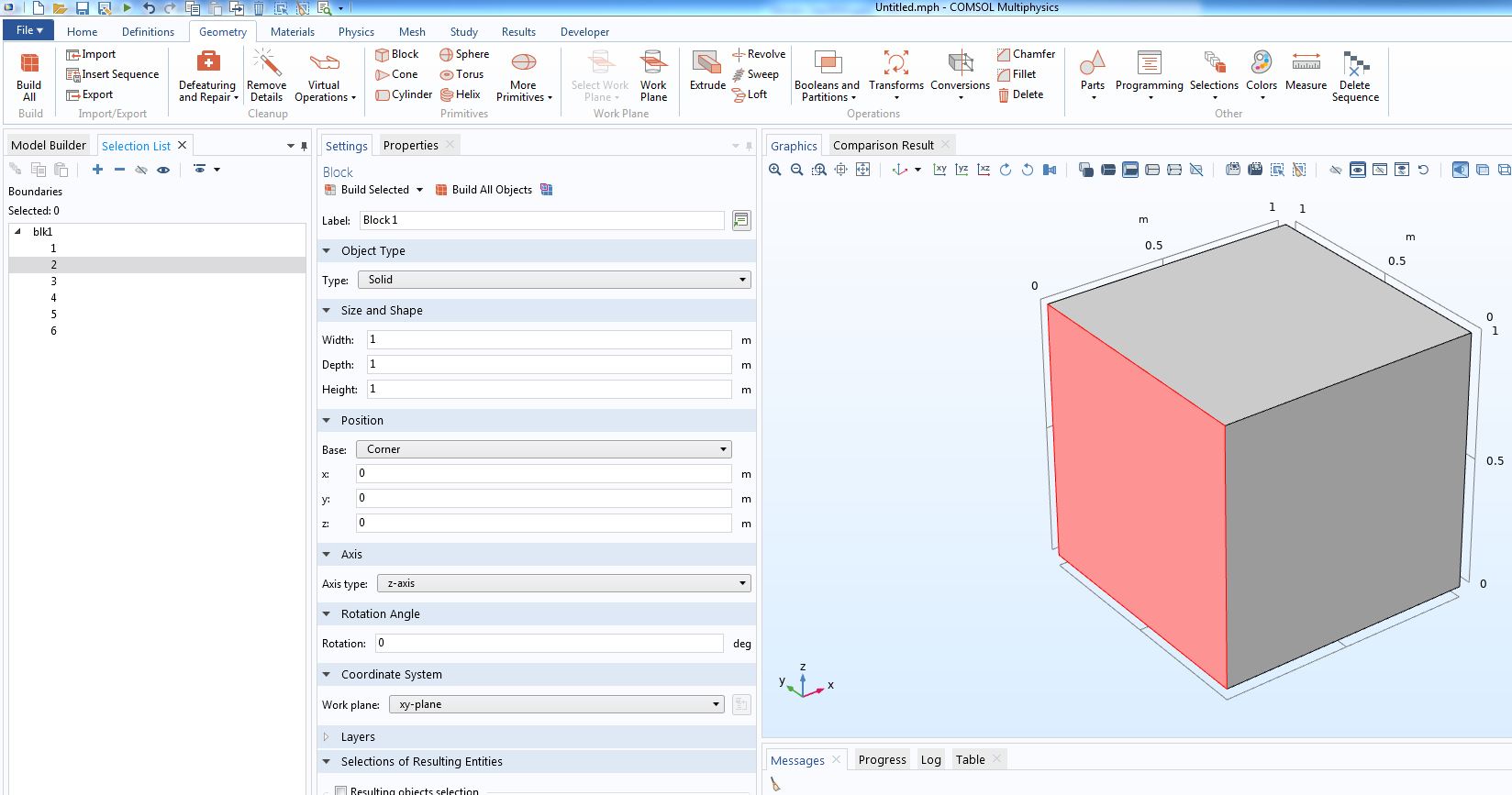

If you click in the ribbon bar "Home"->"Windows"->"Selection List" you will get a list of all geometry objects. If you click on "Select Boundaries" in the "Graphics" window you will see a list of all boundaries, see attached picture.

Regards, Björn

Hello Alfonso, If you click in the ribbon bar "Home"->"Windows"->"Selection List" you will get a list of all geometry objects. If you click on "Select Boundaries" in the "Graphics" window you will see a list of all boundaries, see attached picture. Regards, Björn

Attachments:
