Importing 2D geometry from CAD
Posted 23 gen 2020, 12:36 GMT-5 General, CAD Import & LiveLink™ Products for CAD, Geometry Version 5.5 0 Replies
Please login with a confirmed email address before reporting spam

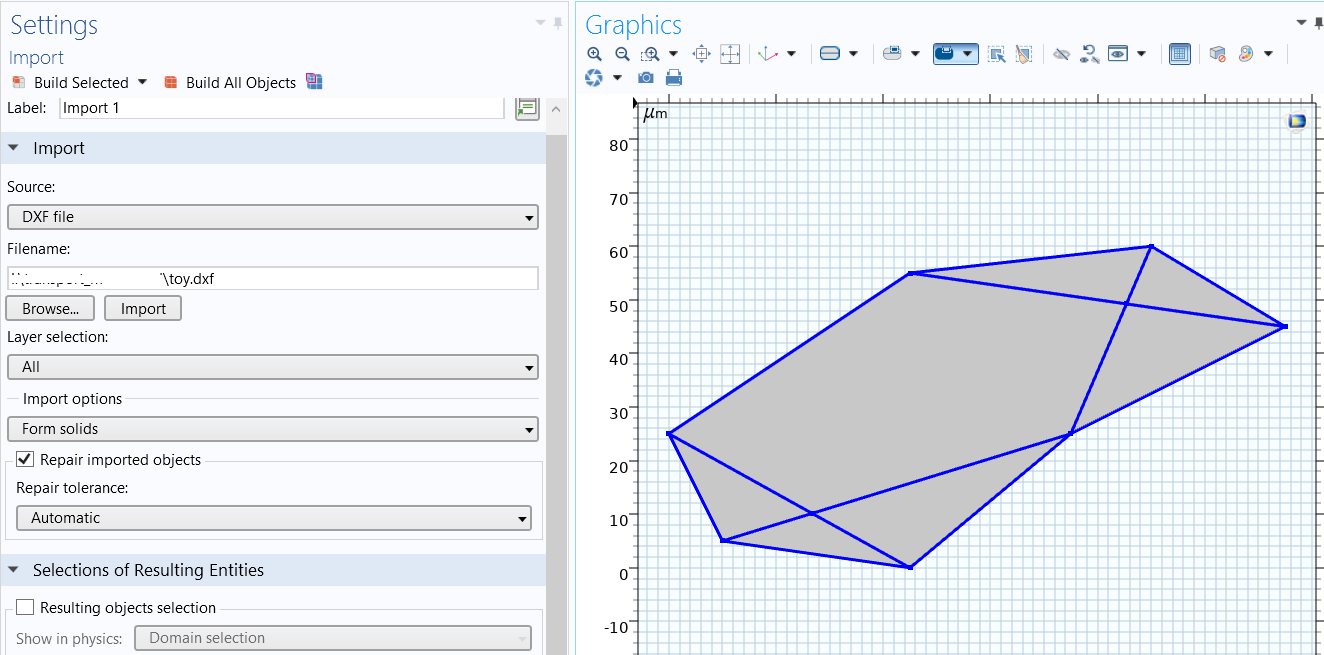

I've imported a 2d geometry from CAD (image attached).
After import , the 2d geometry appears like a surface. I want to retain only the lines that form the boundaries (highlighted in the image attached)
Any suggestions on how to delete the 2D surface enclosed by the boundary lines will be really helpful. I've to retain only the lines
Attachments:
Hello Natasha
Your Discussion has gone 30 days without a reply. If you still need help with COMSOL and have an on-subscription license, please visit our Support Center for help.
If you do not hold an on-subscription license, you may find an answer in another Discussion or in the Knowledge Base.
