How to select multiple boundries?

Posted 18 mar 2020, 06:59 GMT-4 Wave Optics, General, Mesh Version 5.5 2 Replies

Chang Chang
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Hi:

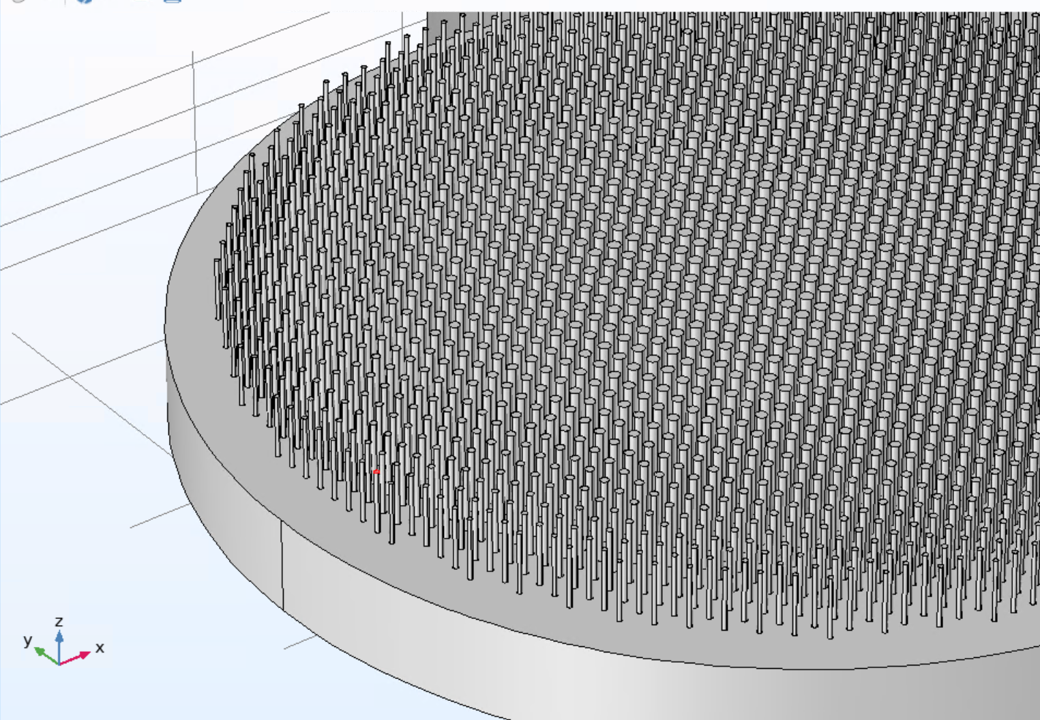

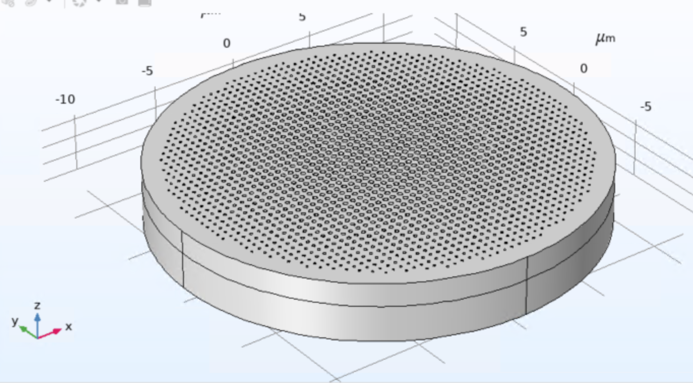

I have constructed the metasurface geometry with matlab script. Now I'm trying to creat mesh, but as in the picture, there are way too many surface to select manually, and it seems that the number of every surface is not sequencial. So, How can I select all top surface of every pillar at once?

Thank you! Chang Chang

Attachments:

2 Replies Last Post 20 mar 2020, 05:53 GMT-4
Jeff Hiller COMSOL Employee

Please login with a confirmed email address before reporting spam

Posted: 5 years ago 18 mar 2020, 08:22 GMT-4

Hello Chang,

There are several tools in the GUI to create selections without picking entities one by one. They are accessed through the Model Builder under the Component > Definitions > Selections . One of them will select entities in a cylinder; that should work for your case. Note that you can also perform boolean operations on selections, etc, see Chapter 6 in the Reference Manual (Accessible through File > Help > Documentation, as always).

Best regards,

Jeff

-------------------
Jeff Hiller
Hello Chang, There are several tools in the GUI to create selections without picking entities one by one. They are accessed through the Model Builder under the Component > Definitions > Selections . One of them will select entities in a cylinder; that should work for your case. Note that you can also perform boolean operations on selections, etc, see Chapter 6 in the Reference Manual (Accessible through File > Help > Documentation, as always). Best regards, Jeff
Chang Chang
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 5 years ago 20 mar 2020, 05:53 GMT-4

Thank you, Jeff. That helped a lot.

Thank you, Jeff. That helped a lot.
