3d model magnet field speed

Posted 6 giu 2020, 19:19 GMT-4 Low-Frequency Electromagnetics, Structural & Acoustics Version 5.4 5 Replies

Feng Liu
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

in the 2d model ,In the Physics toolbar, click Domains and choose Velocity (Lorentz Term),however in the 3d model,click Domains,there is no Velocity (Lorentz Term)

5 Replies Last Post 25 giu 2020, 22:45 GMT-4
Robert Koslover Certified Consultant
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 4 years ago 9 giu 2020, 13:35 GMT-4
Updated: 4 years ago 9 giu 2020, 13:36 GMT-4

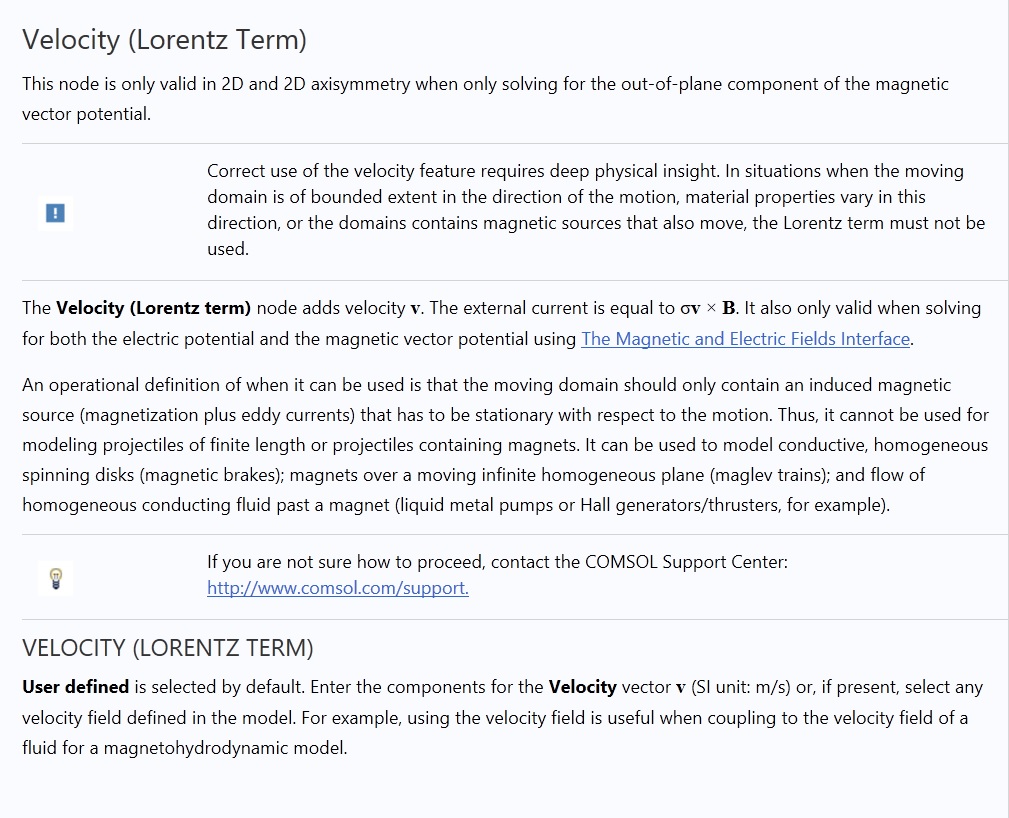

Yes, but this is the velocity of the medium, not the field. See the attached, from Comsol's help system:

-------------------
Scientific Applications & Research Associates (SARA) Inc.
www.comsol.com/partners-consultants/certified-consultants/sara
Yes, but this is the velocity of the medium, not the field. See the attached, from Comsol's help system:

Attachments:

Feng Liu
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 4 years ago 11 giu 2020, 09:00 GMT-4

thank you but the magnetic and electric filed is fit for the Steady state solver however i want to use the velocity in Transient solver

thank you but the magnetic and electric filed is fit for the Steady state solver however i want to use the velocity in Transient solver
Robert Koslover Certified Consultant
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 4 years ago 12 giu 2020, 19:51 GMT-4
Updated: 4 years ago 12 giu 2020, 19:51 GMT-4

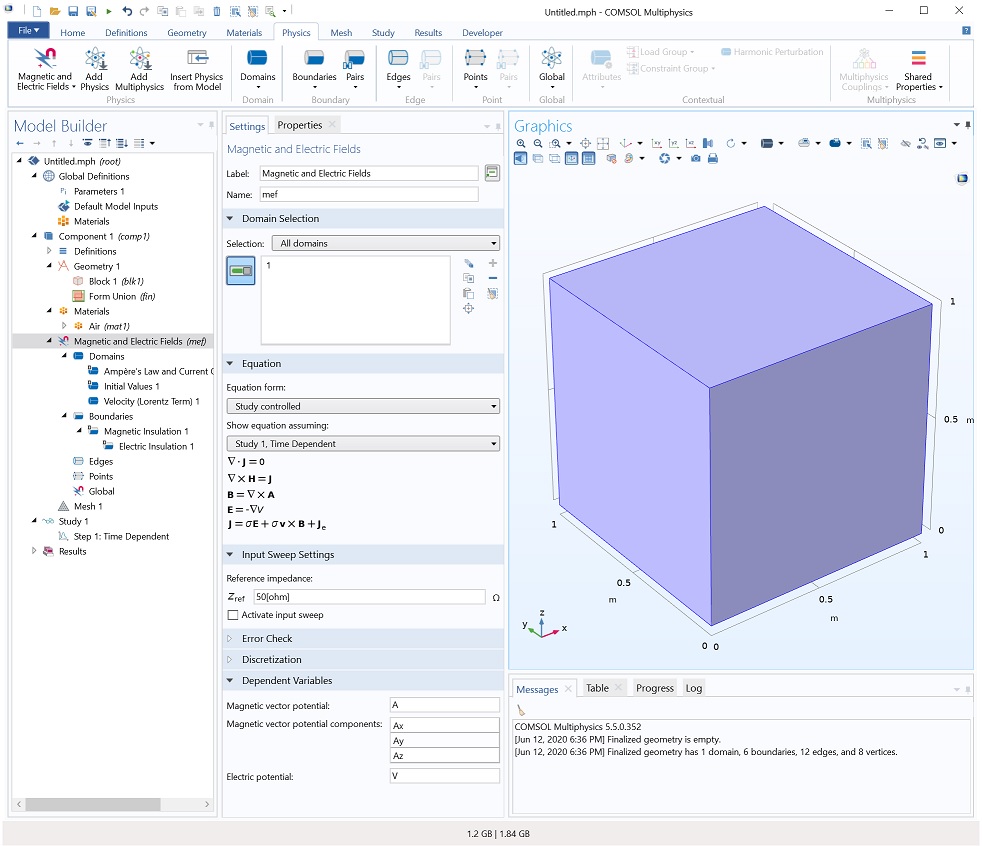

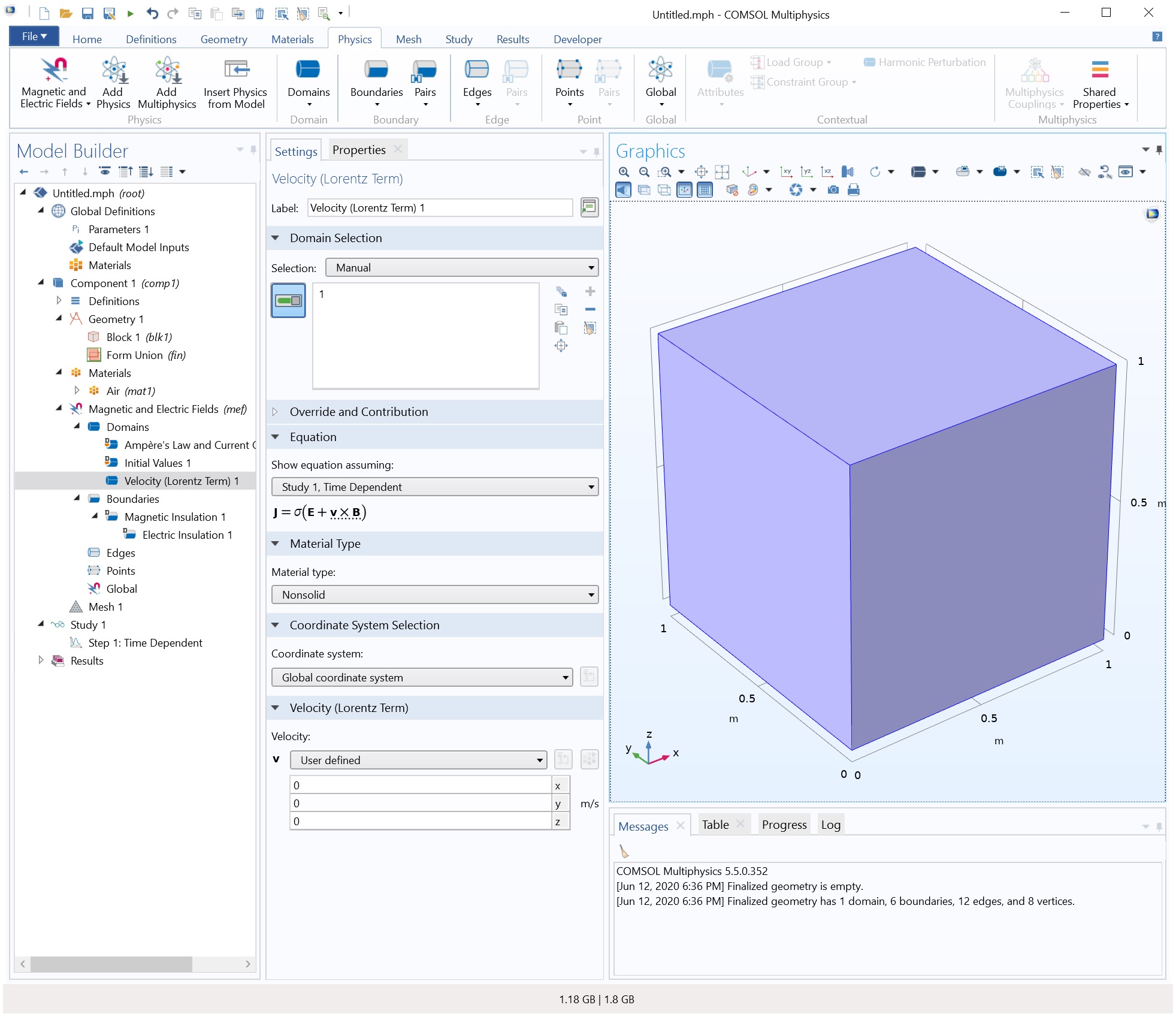

If you need to work with a material velocity in a 3D EM model, you could use the mef formulation, with a velocity term. This is available in the AC/DC module. See the screenshot images attached.

-------------------
Scientific Applications & Research Associates (SARA) Inc.
www.comsol.com/partners-consultants/certified-consultants/sara
If you need to work with a material velocity in a 3D EM model, you could use the **mef** formulation, with a velocity term. This is available in the AC/DC module. See the screenshot images attached.

Attachments:

Feng Liu
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 4 years ago 14 giu 2020, 03:39 GMT-4

thank you,thank you but the magnetic and electric filed is fit for the Steady state solver however i want to use the velocity in Transient solver. the example falling_magnet.mph in the 2d is used for Transient solver.

thank you,thank you but the magnetic and electric filed is fit for the Steady state solver however i want to use the velocity in Transient solver. the example falling_magnet.mph in the 2d is used for Transient solver.
Feng Liu
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 4 years ago 25 giu 2020, 22:45 GMT-4

i want to use the 2d axisymmetric to build the magnetic module,and use the 2d to build the piezoelectricity module,how to combine the 2d axisymmetric module and 2d module?

i want to use the 2d axisymmetric to build the magnetic module,and use the 2d to build the piezoelectricity module,how to combine the 2d axisymmetric module and 2d module?
