Stress on Silicon Wafer
Posted 12 giu 2020, 11:49 GMT-4 Structural & Acoustics, MEMS & Piezoelectric Devices, Materials Version 5.5 6 Replies
Please login with a confirmed email address before reporting spam
I have a model of a silicon wafer with a labyrinth to thermally isolate the center from a section of the outside. I am wanting to know how strong the wafer will be. I initially set up a 3d model by importing a CAD file, but the degrees of freedom were too massive so i have switched to a 2D model so I could do calculations faster. However, it seems any mass placed on the chip center whatsoever causes a huge displacement, which I think has something to do with the dimensional units but I can't find out where I have gone wrong. Furthermore, the chip center is displacing in the direction opposite of where is should be (up instead of down). I am a self-taught COMSOL user and will try to answer questions as best I can, and I understand this is a simple problem so thank you for your time.
Marc
Attachments:
Please login with a confirmed email address before reporting spam
I don't see what you say you see. I see plausible displacements due to gravity in the right direction.
Try using the gravity node or try exerting point forces.
Be sure to activate geometric nonlinearity.
Please login with a confirmed email address before reporting spam

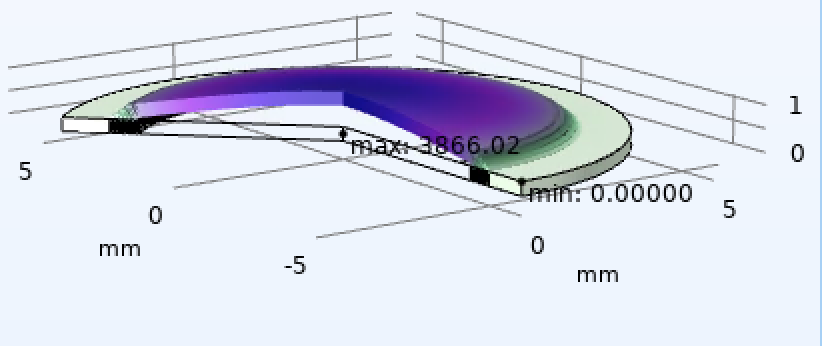

That is strange, because when i plot the maximum and minimum displacement, is around 3 meters in the positive z direction, and I would expect the movement to be in the negative z direction. I have attached an image of my results.
Thank you again for your time, Marc
Attachments:
Please login with a confirmed email address before reporting spam
Hi Marc,
I don't have the software here to open your file, but I am going to guess that you're looking at modes, so that magnitude and orientation have no meaning.
Best,
Jeff
-------------------Jeff Hiller
Please login with a confirmed email address before reporting spam
I only ran the static analysis, which makes perfect sense. The weird things are in the linear buckling analysis, which I have not had occasion to use.
Please login with a confirmed email address before reporting spam
When I run the static analysis (assuming that is the stationary step), the displacement I get is 0. Is this study step just using the intial values, and can I change that?
Please login with a confirmed email address before reporting spam
Using the gravity node does not have this issue, so I will just avoid using the added mass domain condition.
Thank you, Marc
