COMSOL-lost contact problem-step study problem?

Please login with a confirmed email address before reporting spam

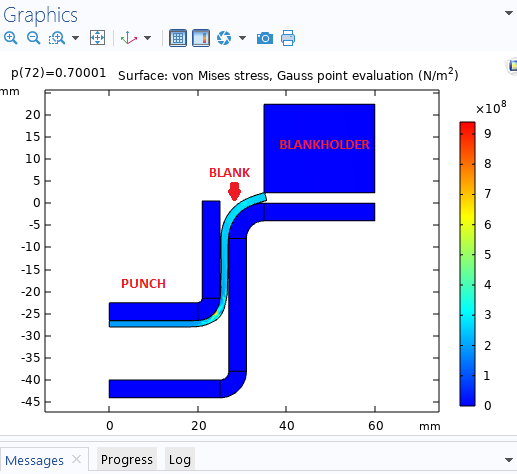

I'm trying to make a deep drawing model that contemplates a force on the blankholder and a sliding of the sheet under the same blankholder (a bit different from the 'die forming' model in the Comsol libraries). I am experiencing a problem as depicted when the blank loses contact with blankholder(present as contact pair in 'Definitions' and as contact with friction in 'Phisics'(Solid Mechanics')). In order to get around the problem I have thought to decompose the simulation in two parts while the punch is lowered of 40 mm with a predescribed displacement:1) blank in contact with blankholder 2) blank not in contact with blankholder (for the remaining punch-predescribed displacement) in which case it would be convenient to use a STEP STUDY or DIFFERENT STUDY?!



0 Replies Last Post 3 feb 2021, 05:39 GMT-5
COMSOL Moderator

Hello Daniele Loconte

Your Discussion has gone 30 days without a reply. If you still need help with COMSOL and have an on-subscription license, please visit our Support Center for help.

If you do not hold an on-subscription license, you may find an answer in another Discussion or in the Knowledge Base.

Note that while COMSOL employees may participate in the discussion forum, COMSOL® software users who are on-subscription should submit their questions via the Support Center for a more comprehensive response from the Technical Support team.
