rotation of the beam - direction of polarization

Posted 8 mar 2021, 09:40 GMT-5 Piezoelectric Devices, Structural & Acoustics 0 Replies

Dimosthenis Giannopoulos
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Hi,

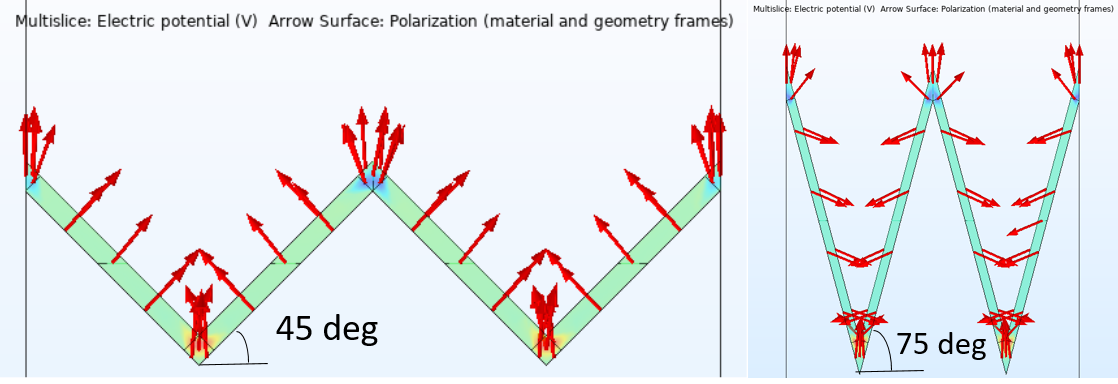

i would like to ask something since i am quite new with Comsol. I have a 3D piezoelectric beam and I rotate it at different angles. When i import the beam, the direction of polarization is in z direction by default. So when i rotate the beam, i also have to rotate the polarization. However, when i rotate both the beam and the polarization by 60 or 75 deg, the arrows which indicate the direction of polarization are not perpendicular to the surface (see attached picture). In the case of 45 deg, it works fine and my results make sense. Is there anything I do not consider?

Thanks, Dimos

Attachments:

0 Replies Last Post 8 mar 2021, 09:40 GMT-5
COMSOL Moderator

Hello Dimosthenis Giannopoulos

Your Discussion has gone 30 days without a reply. If you still need help with COMSOL and have an on-subscription license, please visit our Support Center for help.

If you do not hold an on-subscription license, you may find an answer in another Discussion or in the Knowledge Base.

Note that while COMSOL employees may participate in the discussion forum, COMSOL® software users who are on-subscription should submit their questions via the Support Center for a more comprehensive response from the Technical Support team.
