Toggling heat transfer via conduction between two contacting bodies
Posted 28 mar 2021, 10:33 GMT-4 Structural & Acoustics, Heat Transfer & Phase Change, Structural Mechanics Version 4.4 0 Replies
Please login with a confirmed email address before reporting spam
Hi,
I need to observe the conductive heat transfer between two contacting bodies for some duration, then to stop the heat transfer using an insulative boundary for some duration, then restart the heat transfer.
The goal is to simulate for example, body 1 and body 2 contacting, then separating, then contacting again.
The temperature of body 1 would be 100C and body 2 would be 20C.
I'm currently using the continuity to define the initial contact, but I'm strugglling to find a way to toggle this feature on and off to demonstrate the contact and separation.

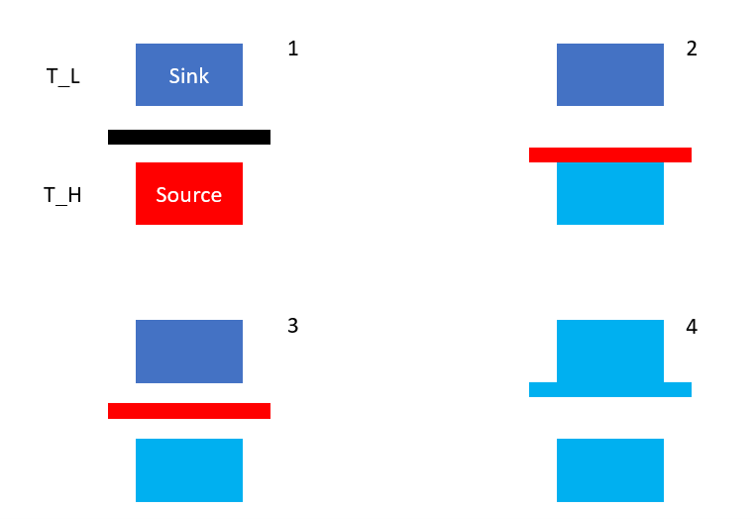

I attached my mph file. As well a picture describing what I'm trying to do overall.
Is what I'm trying to achive even possible in COMSOL 4.4?
Thank you!
Attachments:
Hello Ossie Douglas
Your Discussion has gone 30 days without a reply. If you still need help with COMSOL and have an on-subscription license, please visit our Support Center for help.
If you do not hold an on-subscription license, you may find an answer in another Discussion or in the Knowledge Base.
