Geometry "Contour" Lines On Final Images

Posted 19 apr 2021, 13:22 GMT-4 Results & Visualization Version 5.6 0 Replies

Joseph Mayer
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

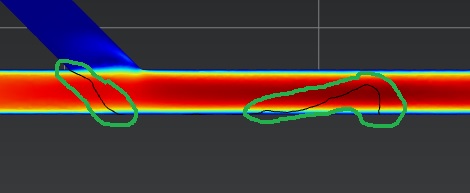

I have finished running a CFD simulation and am exporting images of the results. On these images there are black lines that follow the contour of the model breaking it up into multiple sections. I want to get rid of these lines so that they are not showing up in the images that I export.

Attachments:

0 Replies Last Post 19 apr 2021, 13:22 GMT-4
COMSOL Moderator

Hello Joseph Mayer

Your Discussion has gone 30 days without a reply. If you still need help with COMSOL and have an on-subscription license, please visit our Support Center for help.

If you do not hold an on-subscription license, you may find an answer in another Discussion or in the Knowledge Base.

Note that while COMSOL employees may participate in the discussion forum, COMSOL® software users who are on-subscription should submit their questions via the Support Center for a more comprehensive response from the Technical Support team.
