Failed to copy mesh: Periodic Nanoparticle on Substrate structure

Please login with a confirmed email address before reporting spam

Hello All,

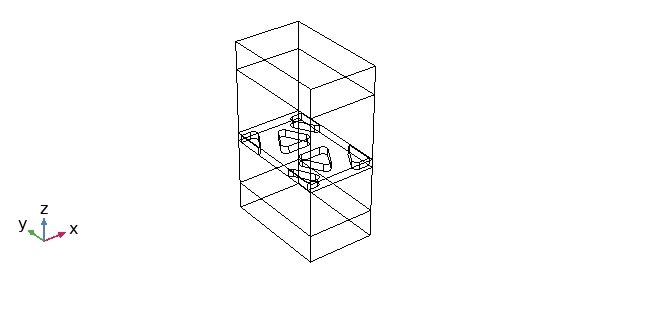

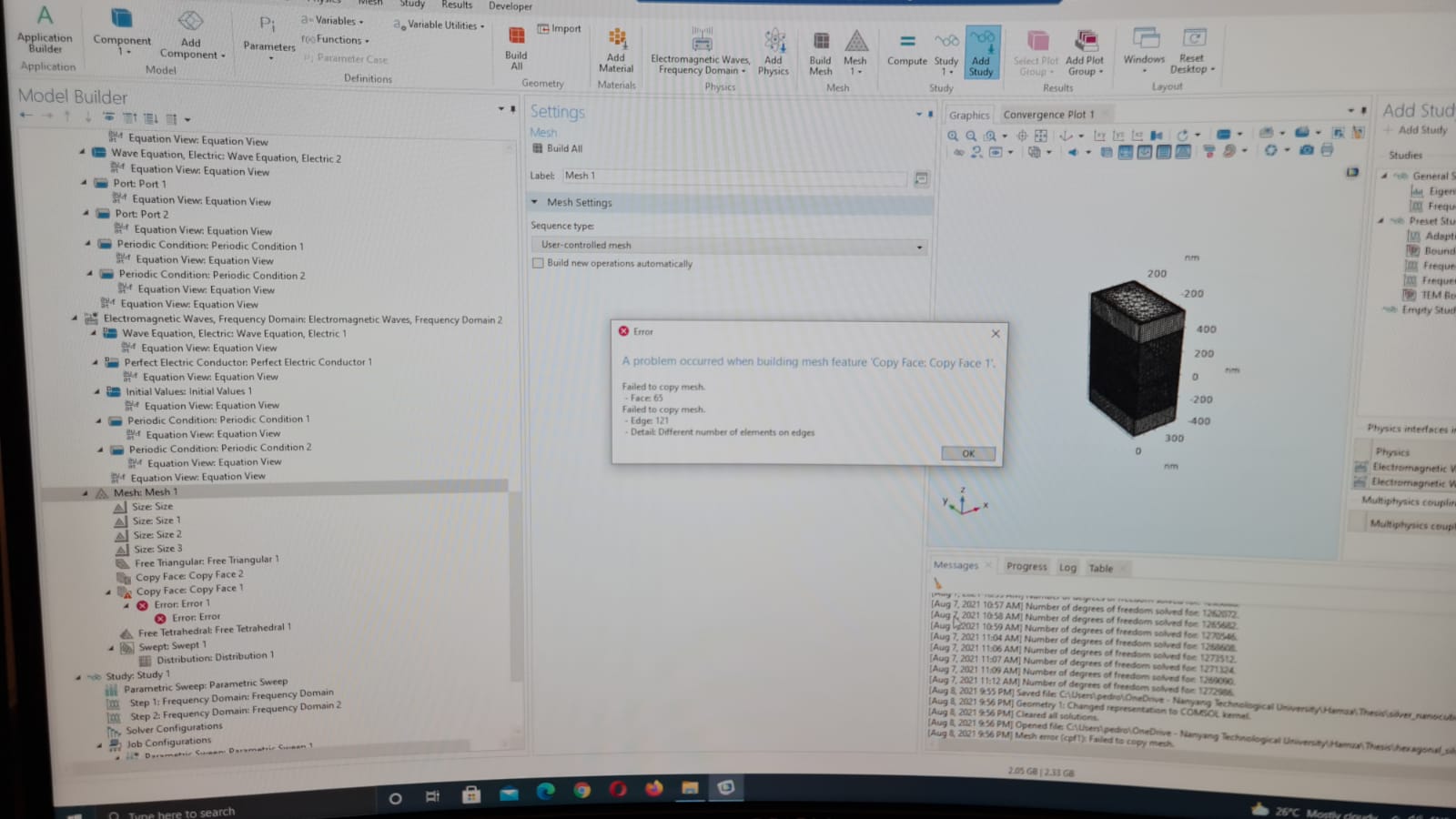

I am trying to construct a periodic plasmonic array on a substrate. The image of the structure is attached. There are silver trinagular particles placed on top of the Quartz substrate. These plasmonic nanoparticles are placed within thin silica spacer layer. I am trying to do meshing by following the "scatterer on a substrate" model. However I am getting error when building the meshing. The error is generated by the copy face 1 (error image attached). This error doesn't occur if I remove the spacer layer. The nanoparticle height is 45 nm and spacer layer varies from 45 nm to 100 nm (spacer height is variable). Any suggestions? Best Regards,

Hamza



1 Reply Last Post 11 ago 2021, 18:23 GMT-4

Please login with a confirmed email address before reporting spam

Posted: 3 years ago 11 ago 2021, 18:23 GMT-4

You can upload your model here then I will have a look.
