Project 3D results on a curve

Posted 4 apr 2022, 15:50 GMT-4 0 Replies

Junfeng Liang
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Hi, I am new to COMSOL.

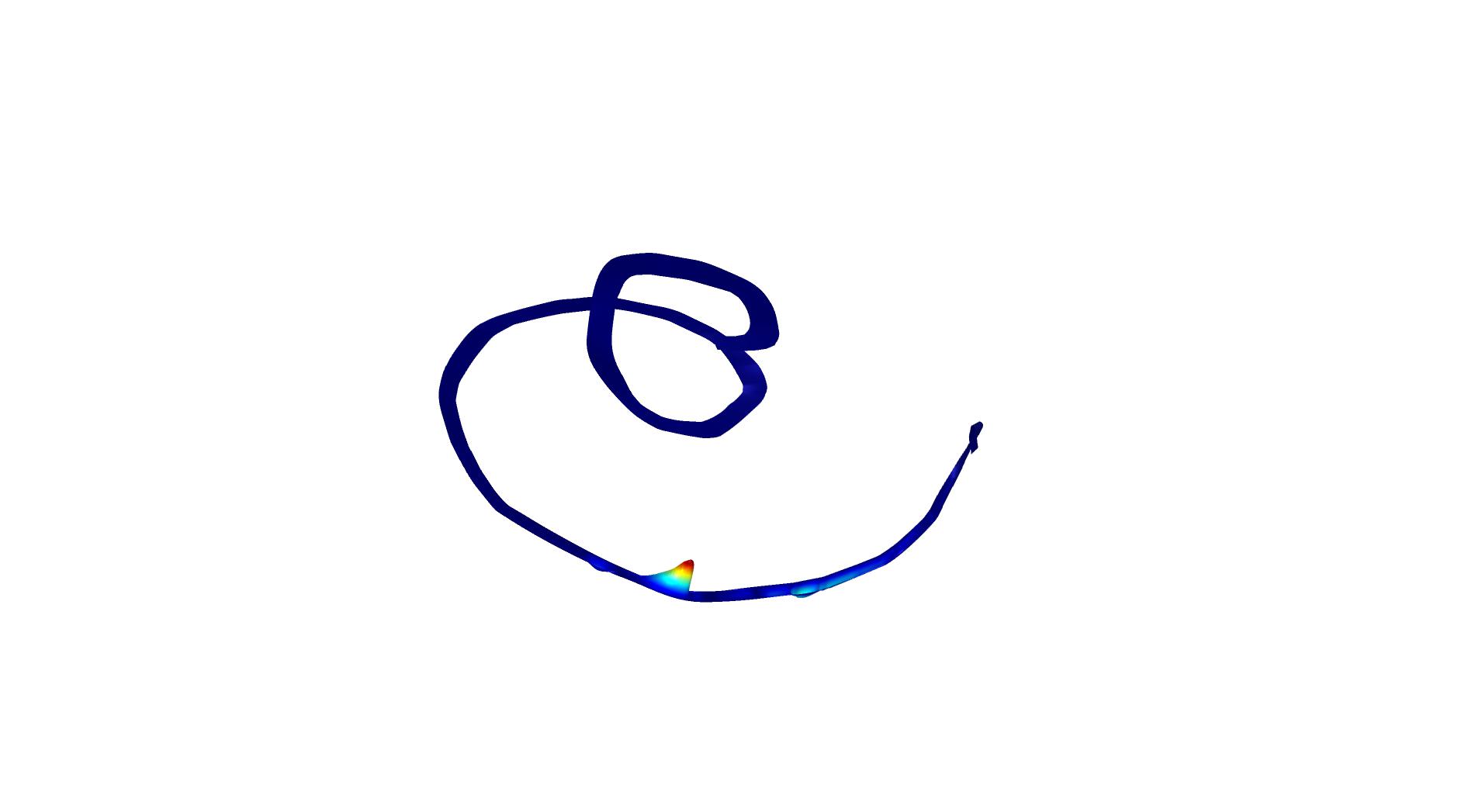

I read the reference and help file and found that there is a function in COMSOL to do the projection. However, I am not quite understand how it can be applied on a complicated geometry. Attatch is picture of my results. I would like to project the peak (maximun value along the width of the strip) on the edge of the strip. How can I define the source map and the destination map?

Attachments:

0 Replies Last Post 4 apr 2022, 15:50 GMT-4
