Thickness of Arrows in Arrow Plot

Posted 26 set 2022, 08:38 GMT-4 Results & Visualization Version 5.6 0 Replies

Vitaly Patrakov IEP UB RAS, UrFU/ RF and Pulsed Power Engineer
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

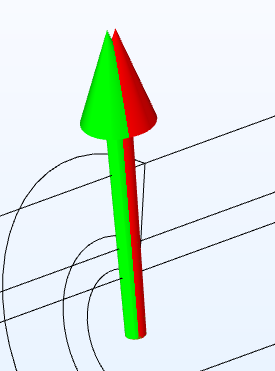

Hi everyone! Does anyone know of a way to make the arrows in Arrow Plot thinner (i.e. of smaller diameter) without changing their length? I need to visualize the process in which two vectors are at about 5-degree angle to each other. The default arrows are too thick and you can't see the process clearly (see screenshot).

Attachments:

0 Replies Last Post 26 set 2022, 08:38 GMT-4
COMSOL Moderator

Hello Vitaly Patrakov

Your Discussion has gone 30 days without a reply. If you still need help with COMSOL and have an on-subscription license, please visit our Support Center for help.

If you do not hold an on-subscription license, you may find an answer in another Discussion or in the Knowledge Base.

Note that while COMSOL employees may participate in the discussion forum, COMSOL® software users who are on-subscription should submit their questions via the Support Center for a more comprehensive response from the Technical Support team.
