Electrostatic Precipitator... Help!!
Posted 22 set 2012, 01:56 GMT-4 Fluid & Heat, Computational Fluid Dynamics (CFD), Mesh Version 4.3 2 Replies
Please login with a confirmed email address before reporting spam

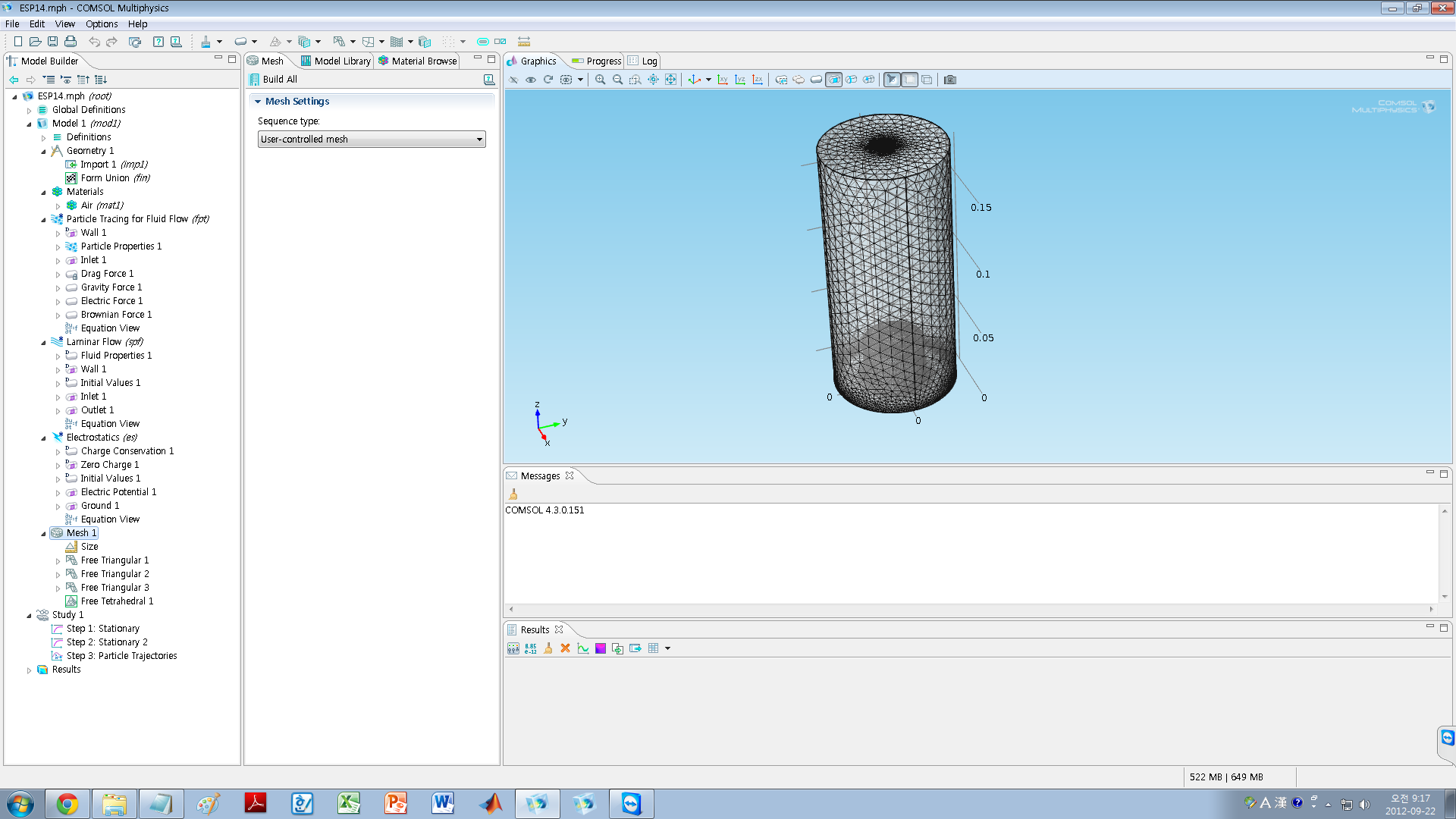

I want to simulate an Electrostatic Precipitator.
In conditions of laminar flow field and electric filed, it is requierd how many particles are gathered.
However, in my simulation, the efficiency of deposition is around 90%, different with the real value of about 70%.
How can I modify this 3D model?
please help me^^
Attachments:
Hello Changho Han
Your Discussion has gone 30 days without a reply. If you still need help with COMSOL and have an on-subscription license, please visit our Support Center for help.
If you do not hold an on-subscription license, you may find an answer in another Discussion or in the Knowledge Base.
Please login with a confirmed email address before reporting spam
Are the particles dry or wet? Have you thought about reentrainment of the particles if they're dry? Real ESPs can have particles resuspended into the gas flow if the conditions are right (particle resistivity, gas flow rate), thus lowering collection efficiency.
Good luck,
HC
Please login with a confirmed email address before reporting spam
I am also working on ESP.
In your model attached, is there any module solving for the space charge density? In literature, many research papers specify a surface charge density (related to Peek's law) on the surface of the discharge electrode. Is this point considered in your model?
Best Regards
