About conductive electrodes of piezoceramics layers
Posted 17 feb 2013, 15:49 GMT-5 3 Replies
Please login with a confirmed email address before reporting spam
Hello everyone,
I am working on a piezoelectric energy harvester(substructure and a piezoceramic layer). I am applying a point force on the substructure and measuring the voltage from the surface of the piezoceramic to obtain voltage FRF (voltage/point force).
I want my model to account for the conductive electrodes bracketing the piezoceramic layer so that I can obtain uniform potential distribution throughout the surface of the piezoceramic. However, I couldnt find the appropriate boundary condition for this purpose.
I appreciate any help,
Bugra Bayik.
I am working on a piezoelectric energy harvester(substructure and a piezoceramic layer). I am applying a point force on the substructure and measuring the voltage from the surface of the piezoceramic to obtain voltage FRF (voltage/point force).
I want my model to account for the conductive electrodes bracketing the piezoceramic layer so that I can obtain uniform potential distribution throughout the surface of the piezoceramic. However, I couldnt find the appropriate boundary condition for this purpose.
I appreciate any help,
Bugra Bayik.
3 Replies Last Post 27 feb 2013, 04:49 GMT-5
Please login with a confirmed email address before reporting spam
Posted:
1 decade ago
Hi
have you tried to use the terminal in "terminated" mode, or linked to a RC circuit ?,
Indeed I cannot find any perfect electric conductive layer (in the plane direction to mimic a conductor deposited on a boundary) in PZD
But I wonder if this BC (was there before) has not been replaced with the "floating potential" BC
--
Good luck
Ivar
have you tried to use the terminal in "terminated" mode, or linked to a RC circuit ?,
Indeed I cannot find any perfect electric conductive layer (in the plane direction to mimic a conductor deposited on a boundary) in PZD
But I wonder if this BC (was there before) has not been replaced with the "floating potential" BC
--
Good luck
Ivar
Please login with a confirmed email address before reporting spam
Posted:
1 decade ago
If what you want to know is the open circuit voltage of your harvester, I would suggest using a grounded boundary condition for one of the electrodes and a floating potential for the second.
Please login with a confirmed email address before reporting spam
Posted:
1 decade ago
Thanks a lot for the comments.
I tried floating potential and terminated boundary conditions. I am plotting electric potential amplitudes of arbitrary points on upper surface of the PZT. My FRF is between 0-200Hz and there are 6 modes in this range (they all can be observed in my measurement point). I attached the plots for:

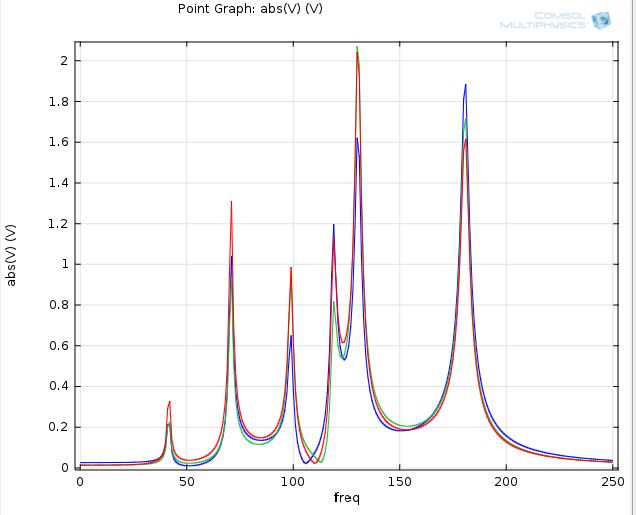

case 1) Zero charge: It is resulting peaks at every natural frequency and arbitrary points on PZT have different amplitudes at each mode as expected.

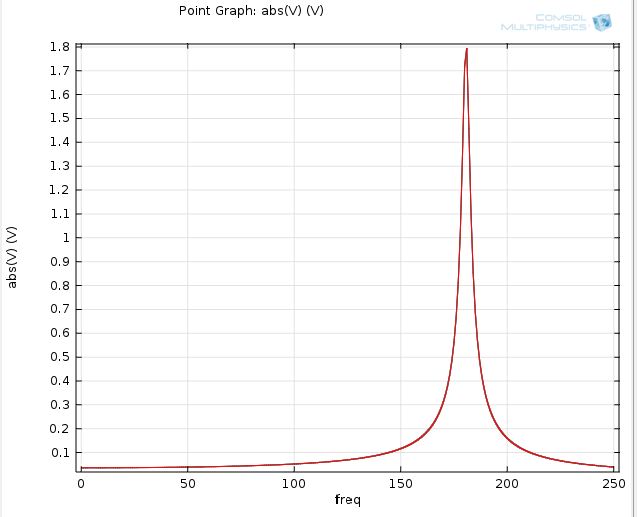

case 2) Floating potential case: Arbitrary points on PZT have same amplitude so the uniform potential distribution is obtained. However, there is only one peak on the FRF. I lost the information for the other modes
case 3) Terminated case: In this BC i am getting an error as follows
Undefined value found.
- Detail: Undefined value found in the stiffness matrix.
.There are 1 equations giving NaN/Inf in the matrix rows for the variable mod1.pzd.V0_1
. at coordinates: (0,0,0), ...
and similarly for the degrees of freedom, NaN/Inf in the matrix columns.
I see that floating potential should be working. My question is why is it eleminating the peaks at other modes and resulting in only one peak?
I tried floating potential and terminated boundary conditions. I am plotting electric potential amplitudes of arbitrary points on upper surface of the PZT. My FRF is between 0-200Hz and there are 6 modes in this range (they all can be observed in my measurement point). I attached the plots for:
case 1) Zero charge: It is resulting peaks at every natural frequency and arbitrary points on PZT have different amplitudes at each mode as expected.
case 2) Floating potential case: Arbitrary points on PZT have same amplitude so the uniform potential distribution is obtained. However, there is only one peak on the FRF. I lost the information for the other modes
case 3) Terminated case: In this BC i am getting an error as follows
Undefined value found.
- Detail: Undefined value found in the stiffness matrix.
.There are 1 equations giving NaN/Inf in the matrix rows for the variable mod1.pzd.V0_1
. at coordinates: (0,0,0), ...
and similarly for the degrees of freedom, NaN/Inf in the matrix columns.
I see that floating potential should be working. My question is why is it eleminating the peaks at other modes and resulting in only one peak?
