Induction heating 2D with magnetic flux concentrator (MFC)

Posted 22 feb 2013, 09:36 GMT-5 Low-Frequency Electromagnetics Version 4.3a 0 Replies

Patrice Gouin
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Hi all,

I have some problem with an induction heating simulation which has a magnetic flux concentrator (a material with a really high relative permeability) in it.

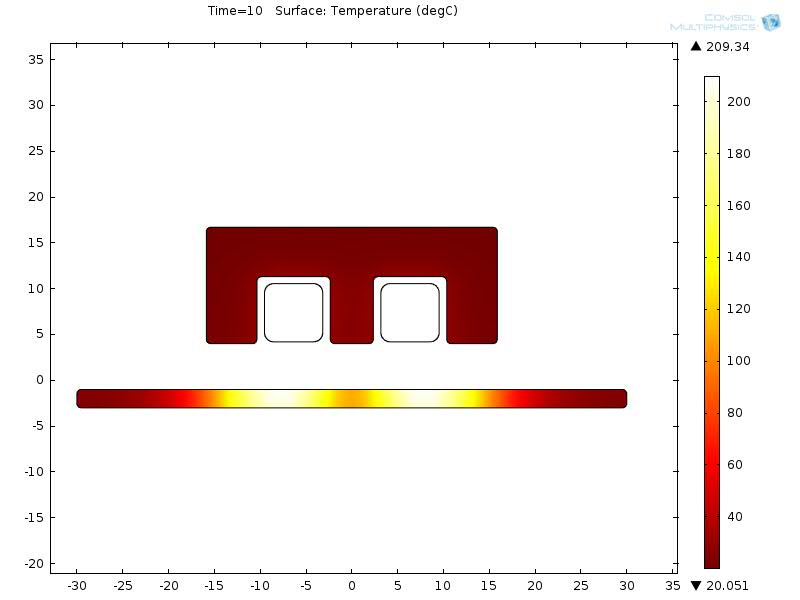

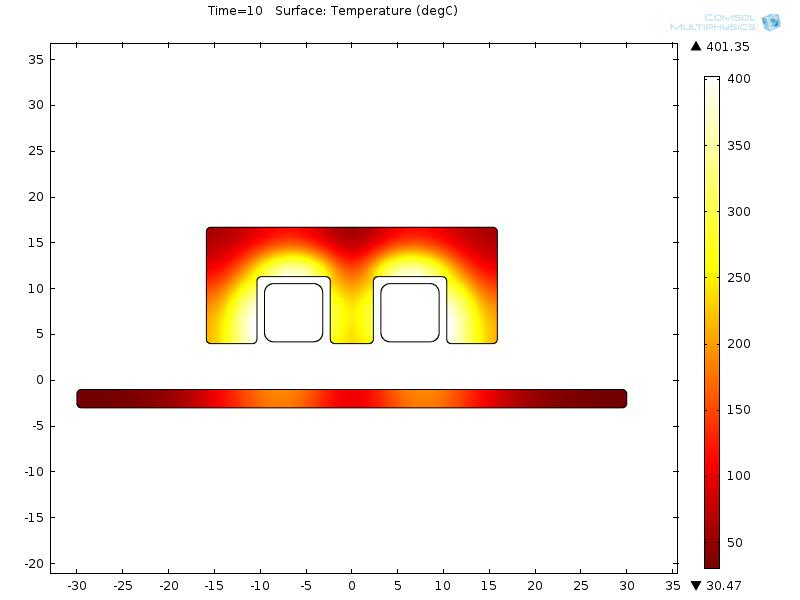

As a result, the metal plate heat up more with a mur=1 for the MFC than a mur=1.27324e7, which is wrong.

Could someone can tell me if I did an error on my model or if I misunderstood something?

My model and results are attached.

Best regards,


Pat
