Plot of a line between two points in 3D
Posted 4 apr 2013, 01:50 GMT-4 Low-Frequency Electromagnetics, Geometry, Mesh, Modeling Tools & Definitions, Parameters, Variables, & Functions, Studies & Solvers Version 4.3 1 Reply
Please login with a confirmed email address before reporting spam
I need to plot a line that describe the electric field between two points in 3D. I tried the way I used to try in 2 D but obviously it didn't work as I wanted. It didn't give me the plot I expected. I thought the reason was that when I click the point it does not penetrate the surface. So all the plots that I could do is on the surface. This is not what I want. I want a point from the core of the sphere to half of the cylinder.

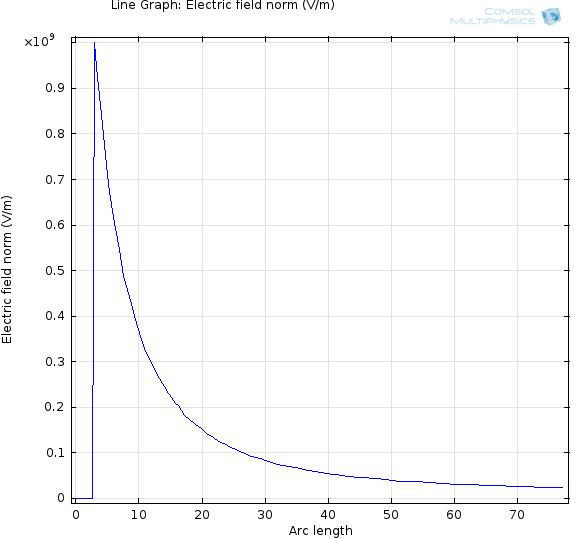

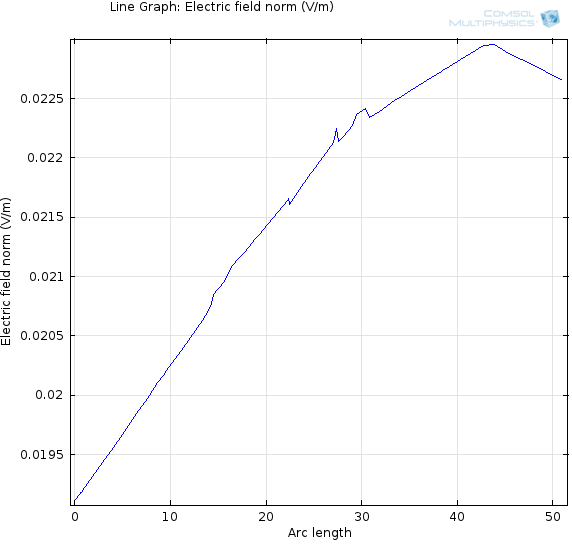

Attached is my model, the expected plot and the wrong plot I am getting.
Do you know how I can penetrate the surface and generate a plot from a point in the core to any point from the cylinder?
I'd really appreciate any insight :)
Thank you.
Attachments:
Please login with a confirmed email address before reporting spam
I think you have to insert each point's coordinates directly in the Cut Line 3D.
core : x 0 y 0 z 0
side of cylinder : x 100 y 0 z 0
