How can we merge the different graphs (Two graph) in COM SOL?

Posted 10 mag 2013, 21:48 GMT-4 Low-Frequency Electromagnetics Version 4.3 1 Reply

N Murugan
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Hi

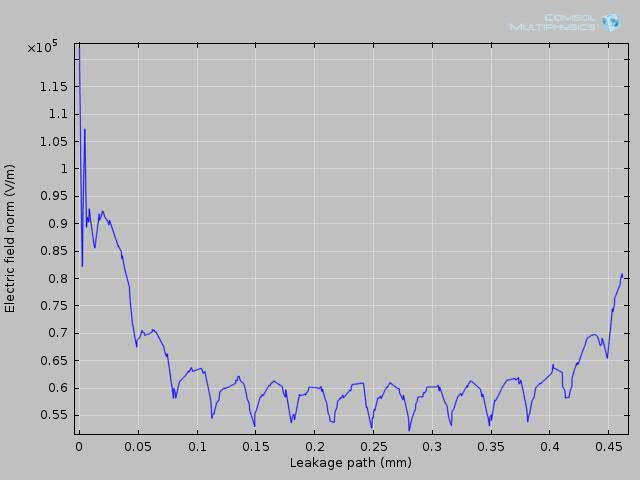

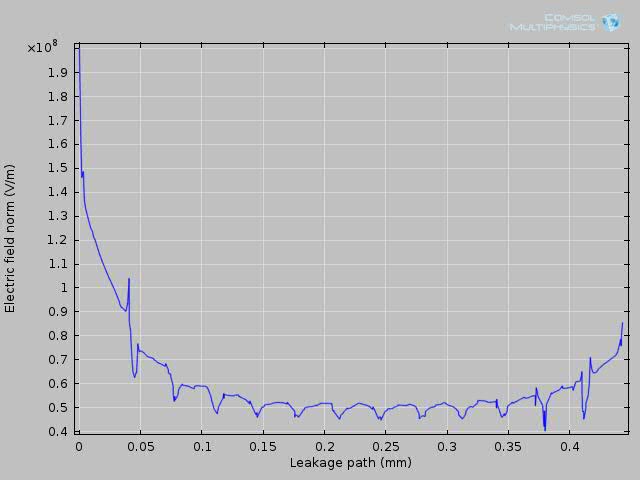

I work with comsol 4.3 AD/DC model( electric current), i have one problem in merge or combine two different model electric filed graph in one sheet. i attach my graph. How to combine it's.

Please help any one.


1 Reply Last Post 13 mag 2013, 04:59 GMT-4
Jens Krause
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 1 decade ago 13 mag 2013, 04:59 GMT-4
Hallo,

I see two ways:

The result noe "1D Plot Group" can have two sub nodes
("Table Graph" or "Line Graph") referring to two different data
sourcess. That means that you must have the two solution
in memory at the same time.


or:

Export the data to a file and use your favourite plotting
tool.

Regards

Jens

Hallo, I see two ways: The result noe "1D Plot Group" can have two sub nodes ("Table Graph" or "Line Graph") referring to two different data sourcess. That means that you must have the two solution in memory at the same time. or: Export the data to a file and use your favourite plotting tool. Regards Jens
