2D model coupling

Posted 21 giu 2013, 07:51 GMT-4 1 Reply

Kevin Bruurs
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

I want to couple two 2D models, the first models computes a stationary state and the second should use the result to compute a time dependent model. I thought that with identity mapping I could read the results from my stationary and use them as initial condition for the time dependent model.

I know that the problem in this case it can be solved easier, but I want to use the concept in a bigger reaction engineering model.

Thanks in advance,

Kevin Bruurs

Attachments:

1 Reply Last Post 24 giu 2013, 10:28 GMT-4
Frank van Gool COMSOL Employee

Please login with a confirmed email address before reporting spam

Posted: 1 decade ago 24 giu 2013, 10:28 GMT-4
Dear Kevin,

Not sure what your question is in the end, but I attached a model which shows how to use a result from a different study as initial value for your transient calculation.

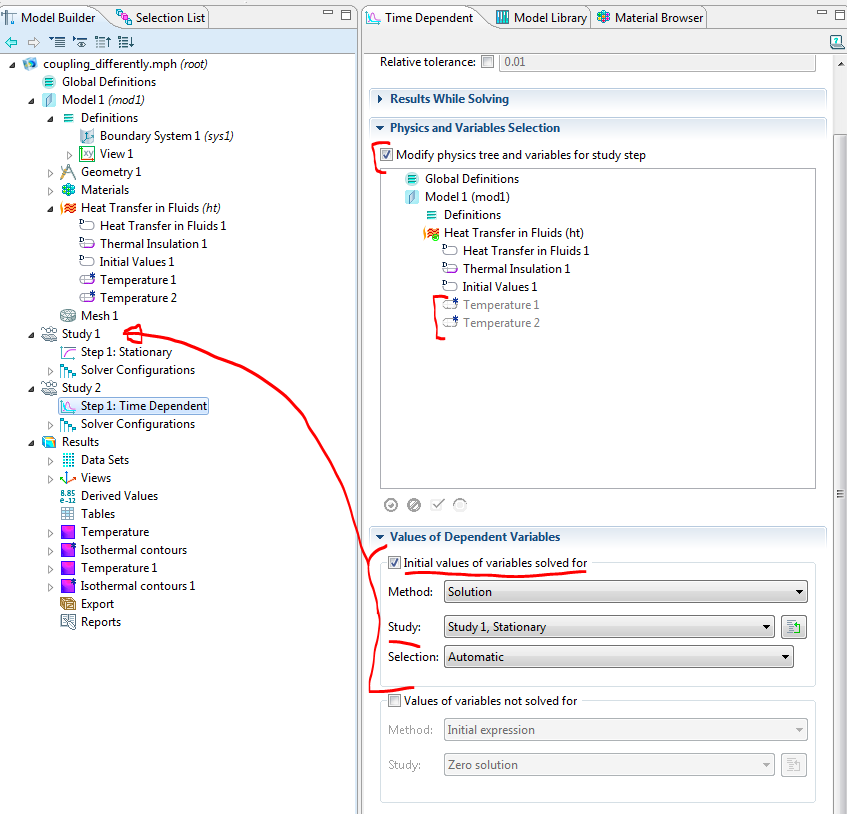

The screenshot shows the most relevant settings in this case.

In short, you use the results from a different study as initial values. In study 2, you disable the boundary conditions for the temperature.

If this is not what you intended, please explain what you want to achieve and why. There might be multiple ways to solve this.

Best regards,
Frank
Dear Kevin, Not sure what your question is in the end, but I attached a model which shows how to use a result from a different study as initial value for your transient calculation. The screenshot shows the most relevant settings in this case. In short, you use the results from a different study as initial values. In study 2, you disable the boundary conditions for the temperature. If this is not what you intended, please explain what you want to achieve and why. There might be multiple ways to solve this. Best regards, Frank
