problem defining variable function to obtain strain value

Posted 27 dic 2013, 11:19 GMT-5 0 Replies

Nor Syamimi
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

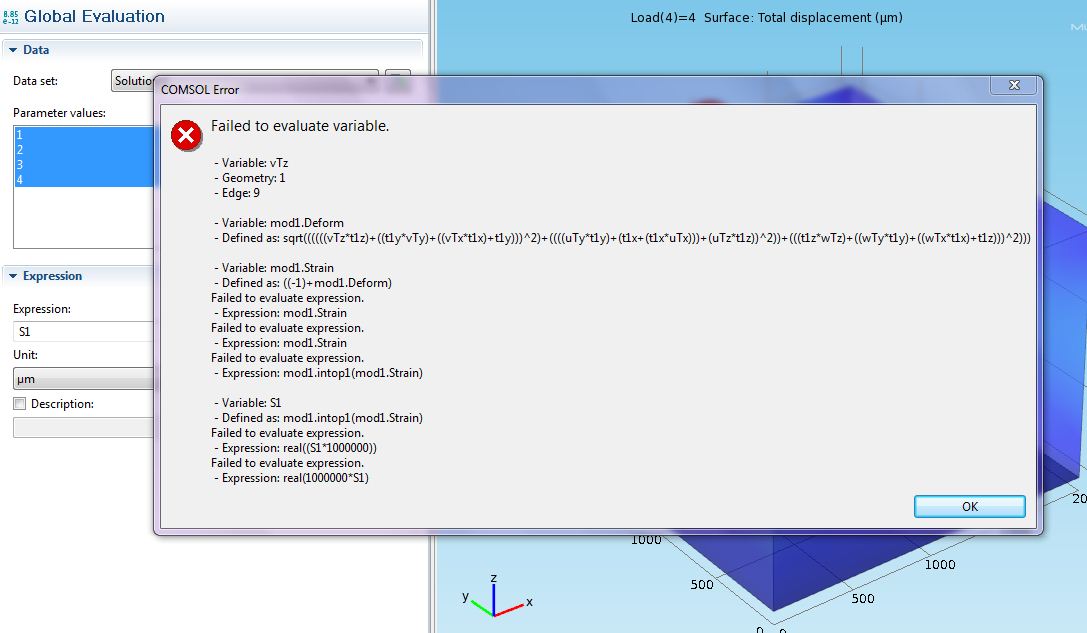

Hi, currently i am trying to calculating strain by using this formula in structural mechanics module 4.0 comsol. I am not able to get the strain value. The only value i get is the intop1(1) but comsol cannot identify other variables sch as intop1(intcpl_source_S1). Any ideas? I've attached the variables that i've used below.

Deform formula:
sqrt((t1x+uTx*t1x+uTy*t1y+uTz*t1z)^2+(t1y+vTx*t1x+vTy*t1y+vTz*t1z)^2+(t1z+wTx*t1x+wTy*t1y+wTz*t1z)^2)

Thank u..

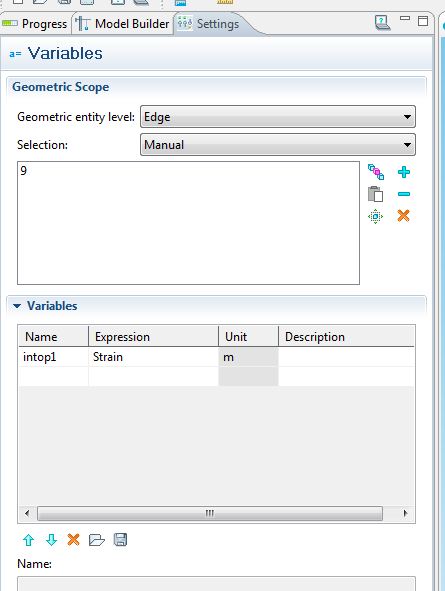

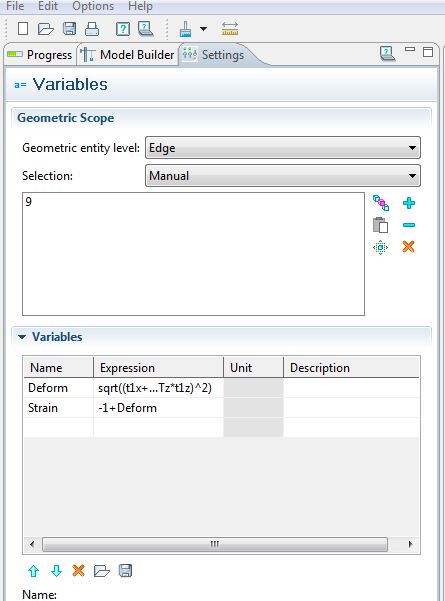

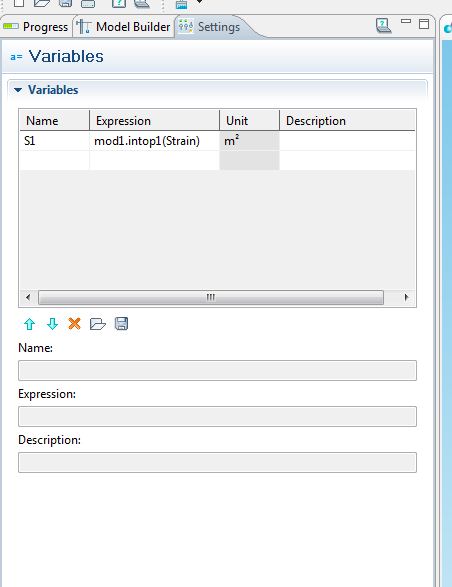

Attachments:

0 Replies Last Post 27 dic 2013, 11:19 GMT-5
COMSOL Moderator

Hello Nor Syamimi

Your Discussion has gone 30 days without a reply. If you still need help with COMSOL and have an on-subscription license, please visit our Support Center for help.

If you do not hold an on-subscription license, you may find an answer in another Discussion or in the Knowledge Base.

Note that while COMSOL employees may participate in the discussion forum, COMSOL® software users who are on-subscription should submit their questions via the Support Center for a more comprehensive response from the Technical Support team.
