How to limit time step size, when time depend solver neglects Nyquist Theorem?

Please login with a confirmed email address before reporting spam

I have a boundary condition: Boundary Temperature varies as: 293.15[K] + sin(t/100[s]) * 1[K]

The Time Dependend Solver generates a time series beginning with
0,1,10,20,40,80,160,320,640,1280 ...
where the last time step obviously severely surpaces the Nyquist frequency limitation.
So it seems I have to set a limit for time steps manually.

How will I have to do that?

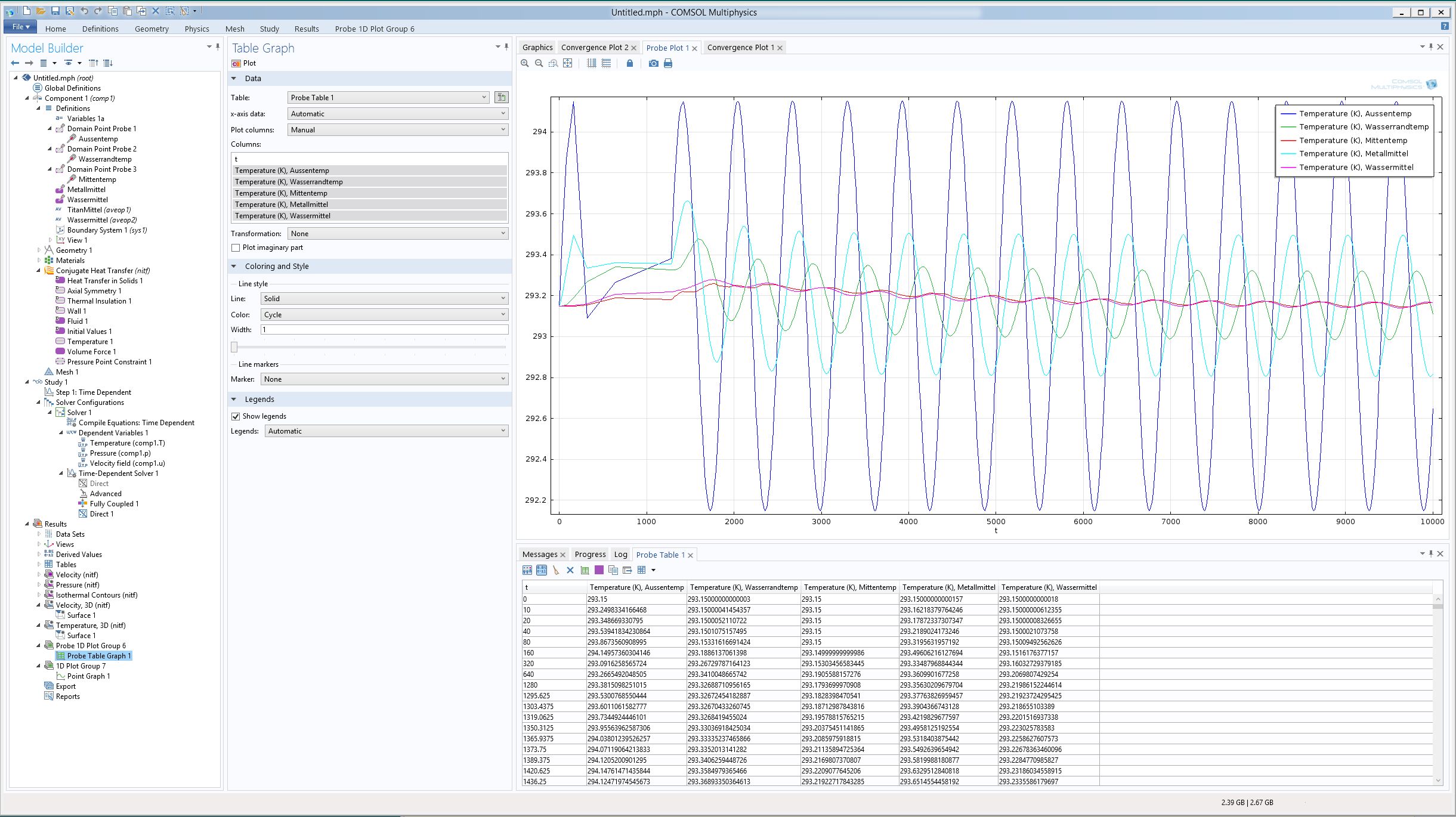

I attach a screen-shot of the problem


3 Replies Last Post 18 mar 2014, 11:53 GMT-4

Please login with a confirmed email address before reporting spam

Posted: 1 decade ago 18 mar 2014, 09:54 GMT-4
When I choose Study/Timed Dependent, there is no place to set a maximum time step size.
It needs one run, to let COMSOL generate a node "Solver Configuration". Opening this one I can dig deeper at: Study 1/Solver Configuration/Time Dependent Solver1/Maximum Step

But this option is only available after an initial faulty run, not during setting up the model for the first run. Correct?
When I choose Study/Timed Dependent, there is no place to set a maximum time step size. It needs one run, to let COMSOL generate a node "Solver Configuration". Opening this one I can dig deeper at: Study 1/Solver Configuration/Time Dependent Solver1/Maximum Step But this option is only available after an initial faulty run, not during setting up the model for the first run. Correct?

Edgar J. Kaiser Certified Consultant

Please login with a confirmed email address before reporting spam

Posted: 1 decade ago 18 mar 2014, 11:29 GMT-4

You can always show the default solver by right clicking the study node and choose from the context menu.

--
Edgar J. Kaiser
emPhys Physical Technology
www.emphys.com
You can always show the default solver by right clicking the study node and choose from the context menu. -- Edgar J. Kaiser emPhys Physical Technology http://www.emphys.com

Please login with a confirmed email address before reporting spam

Posted: 1 decade ago 18 mar 2014, 11:53 GMT-4
Thank You, Yes I found it now.
Thank You, Yes I found it now.
