Helmholtz equation in PDE module

Please login with a confirmed email address before reporting spam

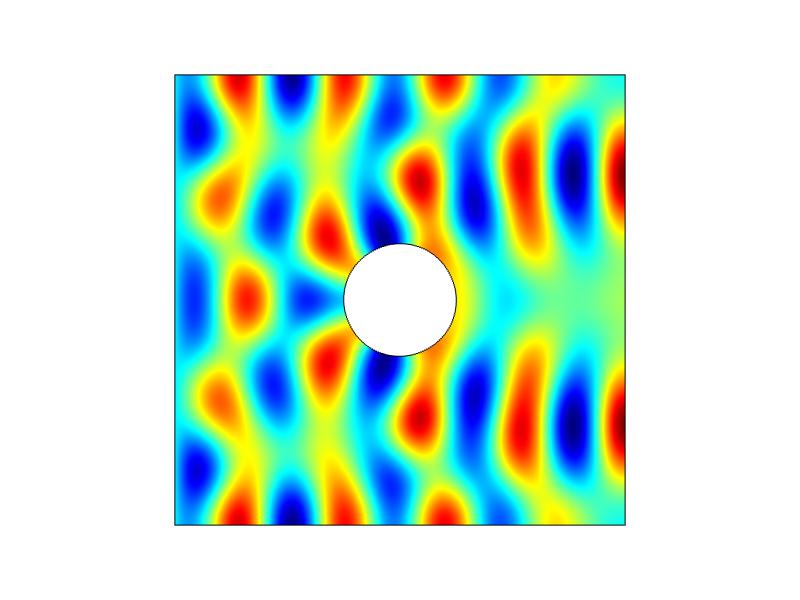

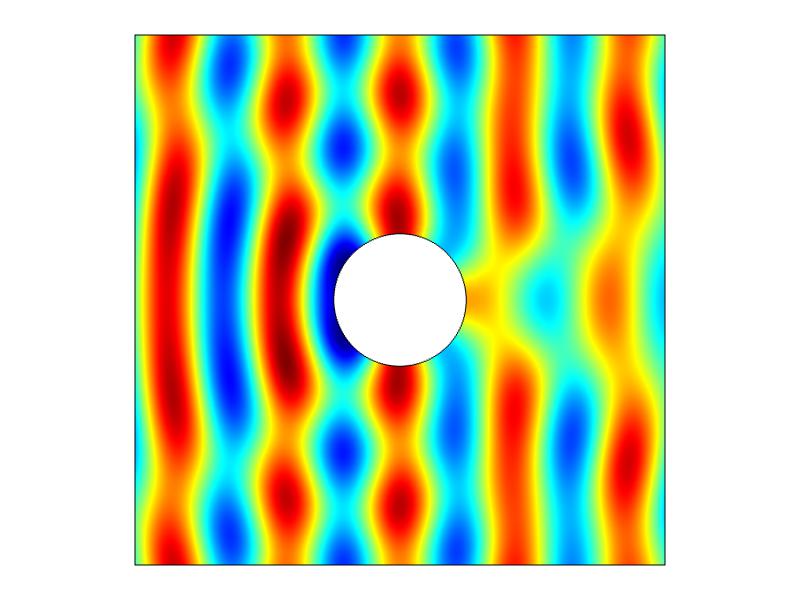

Hi everyone, I have to use the Helmholtz equation of PDE module to analyze a 2D acoustic scattering problem: predicting the acoustic pressure field when a plane pressure wave incidents from the left side on a cylindrical shell. I compared the results obtained by using PDE module and acoustics module. However, they are different. In the PDE, on the left side boundary, I used 'Dirichlet Boundary Condition ' and set r=exp(i*k0*x); the rest boundaries, 'Zero Flux' was applied. Can anyone give me some tips about using PDE to analyze such a problem.
Thanks a lot!


0 Replies Last Post 17 giu 2014, 18:39 GMT-4
COMSOL Moderator

Hello Jie Zhou

Your Discussion has gone 30 days without a reply. If you still need help with COMSOL and have an on-subscription license, please visit our Support Center for help.

If you do not hold an on-subscription license, you may find an answer in another Discussion or in the Knowledge Base.

Note that while COMSOL employees may participate in the discussion forum, COMSOL® software users who are on-subscription should submit their questions via the Support Center for a more comprehensive response from the Technical Support team.
