Coupling Solid-Beam in a Time-dependent simulation
Posted 24 lug 2014, 09:28 GMT-4 Modeling Tools & Definitions, Studies & Solvers, Structural Mechanics Version 4.4 1 Reply
Please login with a confirmed email address before reporting spam

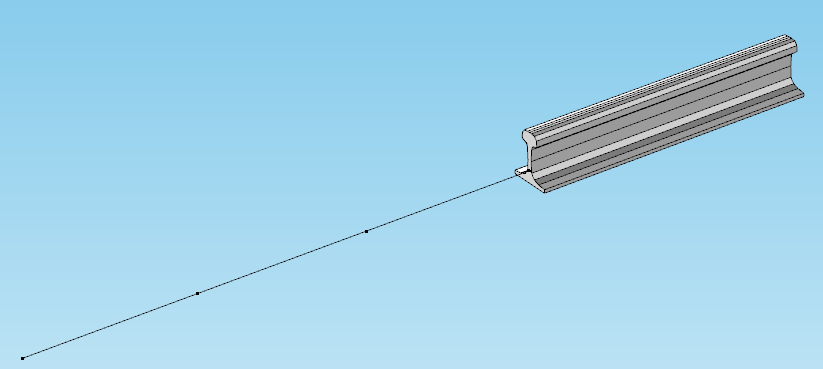

I am working with a simplified railway model. I wish to couple a beam with the 3D model structure of the rail and to apply a moving (depends on time) force on a surface, by means of the command "Boundary Load".
I tried to connect the beam with the solid model with the "Prescribed displacement" command on the first node of the beam setting the average values of u,v,w of the facing surface of the 3D model structure and the rotation through the curl of displacement, as Ivar Kjelberg suggested.
If I try to simulate a stationary study, with a boundary load applied, it works.
Otherwise if I try to apply a moving force (by means of the definition of a square wave dependent on time), it does not work and the solver has big problems gets stuck.
(I used a fully coupled solver)
Thank you in advance
Emanuele
Attachments:
Hello Emanuele Trisolini
Your Discussion has gone 30 days without a reply. If you still need help with COMSOL and have an on-subscription license, please visit our Support Center for help.
If you do not hold an on-subscription license, you may find an answer in another Discussion or in the Knowledge Base.
Please login with a confirmed email address before reporting spam
Could you solve the problem?
