how to resolve a vector in comsol along three perpendicular axes
Posted 15 ott 2014, 12:43 GMT-4 0 Replies
Please login with a confirmed email address before reporting spam
I have been trying to simulate magnetic field lines due to 3 perpendicularly placed electromagnetic coils in an aluminium case . I got the 3d plot of superposition of magnetic field lines due to te three coils(using streamline domain in 3 d plot).I have now two issues to resolve
1)first of all , how to get magnetic field vector at each and every point of the aluminium case. I can certainly guess the magnitude of the resulatant magnetic field lines by the colour table , but how to get exact values.
2)even after getting exact values how to resolve it in 3 d perpendicular vectors.

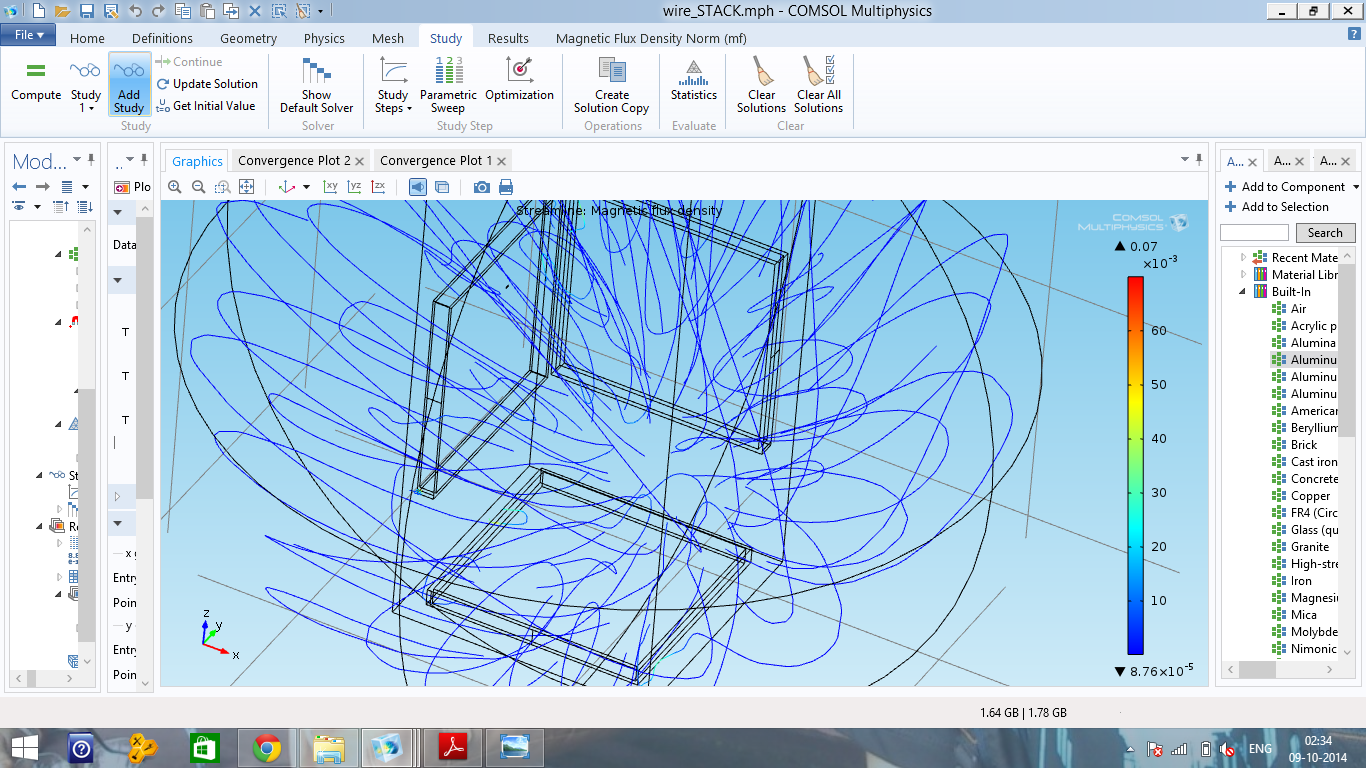

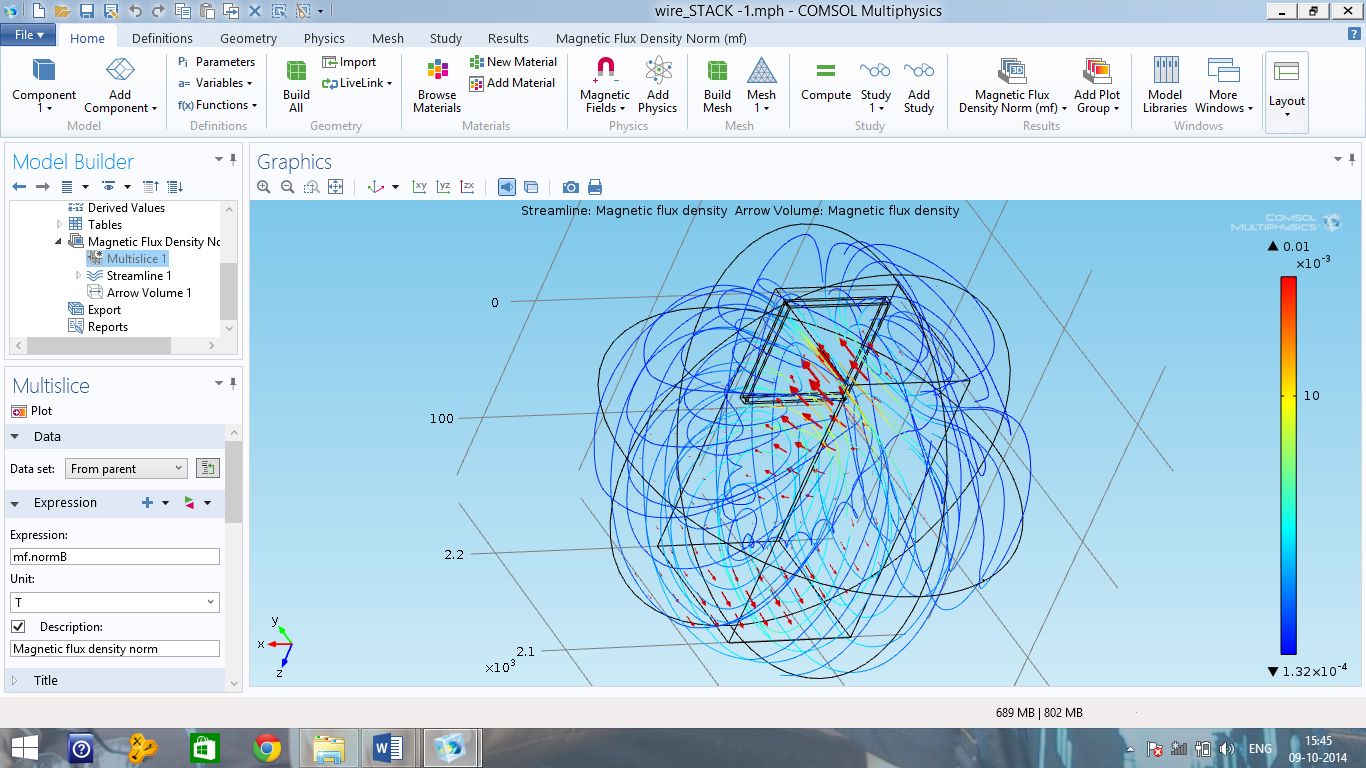

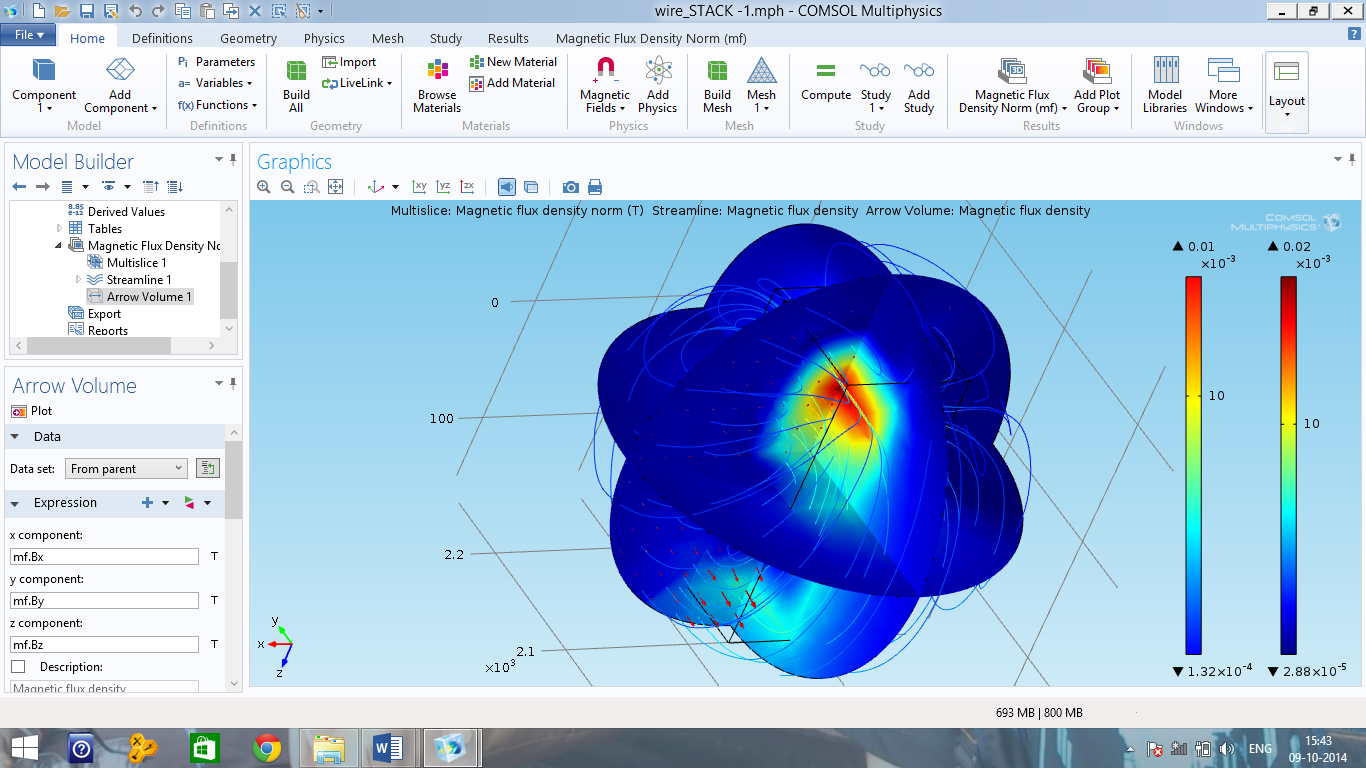

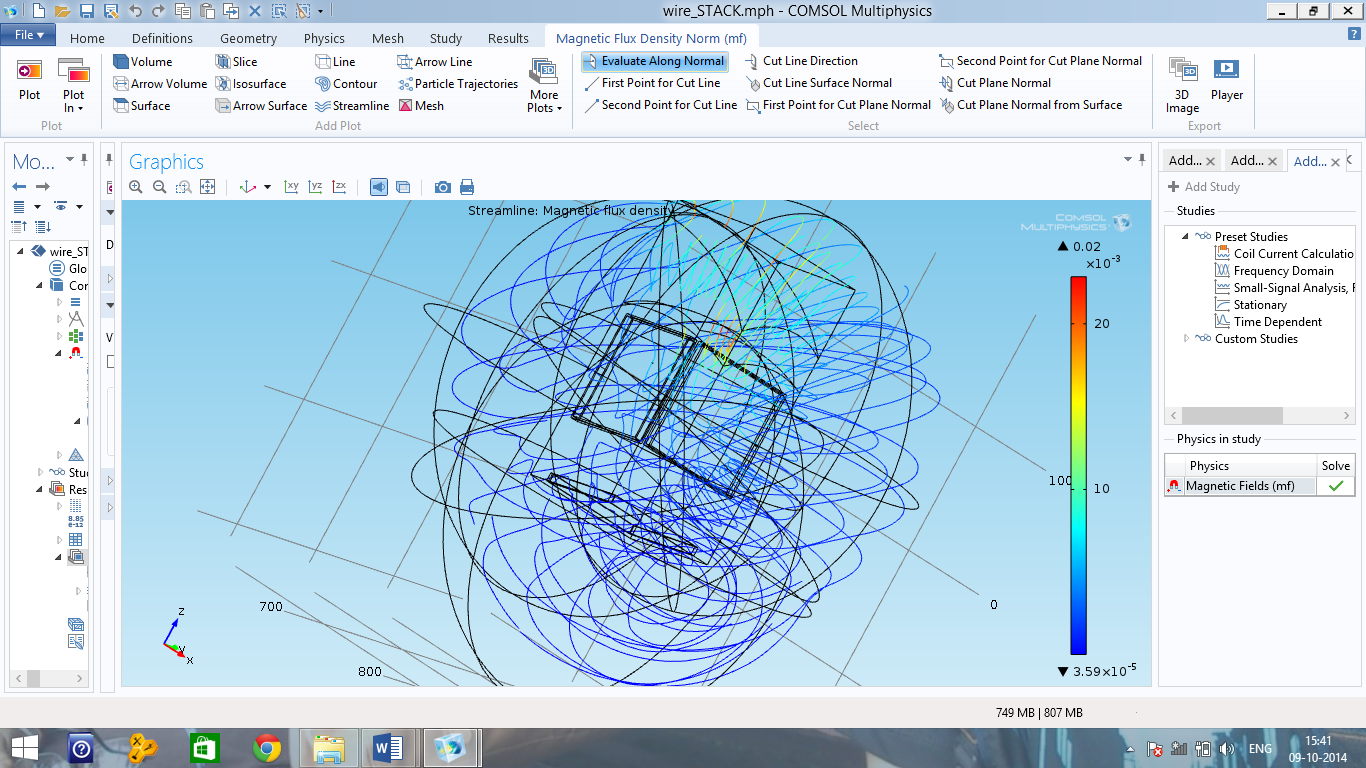

I have attached screen shots for 1coil and as well as for 3 coils .
thanks in advance ,
jyotirmaya ojha
