Convergence ACDC with saturation
Posted 4 dic 2014, 10:02 GMT-5 Low-Frequency Electromagnetics, MEMS & Nanotechnology, MEMS & Piezoelectric Devices 2 Replies
Please login with a confirmed email address before reporting spam
Dear all,

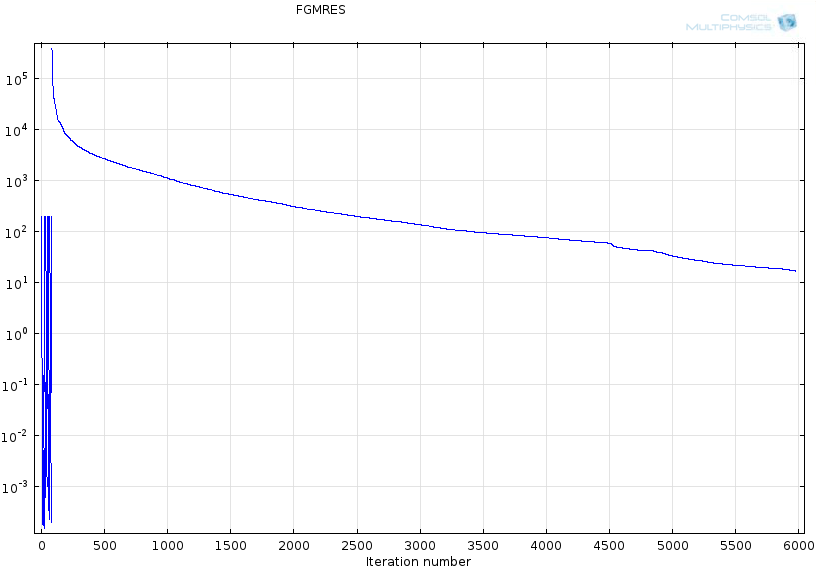

I am getting the convergence pattern presented in the figure attached for the simulation of magnetic and electric fields considering saturation of the metal (through a mu_r dependent of B). The simulation is fine until 95%, when the error becomes to decrease slowly. I am using a frequency domain study with stationary solver. There is a clue of what could be done to improve the solution?
Regards
I am getting the convergence pattern presented in the figure attached for the simulation of magnetic and electric fields considering saturation of the metal (through a mu_r dependent of B). The simulation is fine until 95%, when the error becomes to decrease slowly. I am using a frequency domain study with stationary solver. There is a clue of what could be done to improve the solution?
Regards
Attachments:
2 Replies Last Post 21 mar 2015, 10:45 GMT-4
Please login with a confirmed email address before reporting spam
Posted:
10 years ago
Problem solved! It was an initial guess issue.
Regards
Regards
Please login with a confirmed email address before reporting spam
Posted:
9 years ago
Hello sir
I am working in the flux gate magnetometer. This is the magnetic sensor. The structure consists of magnetic core and two coils such us driving and pickup coil. So i have to excite the primary coil with AC current then this will create the magnetic field which i have to sense it from pickup coils. I know it wont work as simple. My questions are as follows,
1) I need to saturate the core by exciting the driving coil
2) Since am giving the alternating current in driving coil it would make core to come down from the saturation state where the attraction of external magnetic field will be high at that point i need to measure the magnetic flux across the sense coil .
How to create the external magnetic field? Thanks in advance.
I am working in the flux gate magnetometer. This is the magnetic sensor. The structure consists of magnetic core and two coils such us driving and pickup coil. So i have to excite the primary coil with AC current then this will create the magnetic field which i have to sense it from pickup coils. I know it wont work as simple. My questions are as follows,
1) I need to saturate the core by exciting the driving coil
2) Since am giving the alternating current in driving coil it would make core to come down from the saturation state where the attraction of external magnetic field will be high at that point i need to measure the magnetic flux across the sense coil .
How to create the external magnetic field? Thanks in advance.
