How to apply moment to a surface?
Posted 24 mar 2015, 02:29 GMT-4 Heat Transfer & Phase Change, Parameters, Variables, & Functions, Structural Mechanics Version 5.0 1 Reply
Please login with a confirmed email address before reporting spam
Hi all,
I am trying to model a brake disc in terms of thermal stress during a braking procedure.
I have the thermal part of the simulation down, but I am having trouble with the Structural Mechanics part.

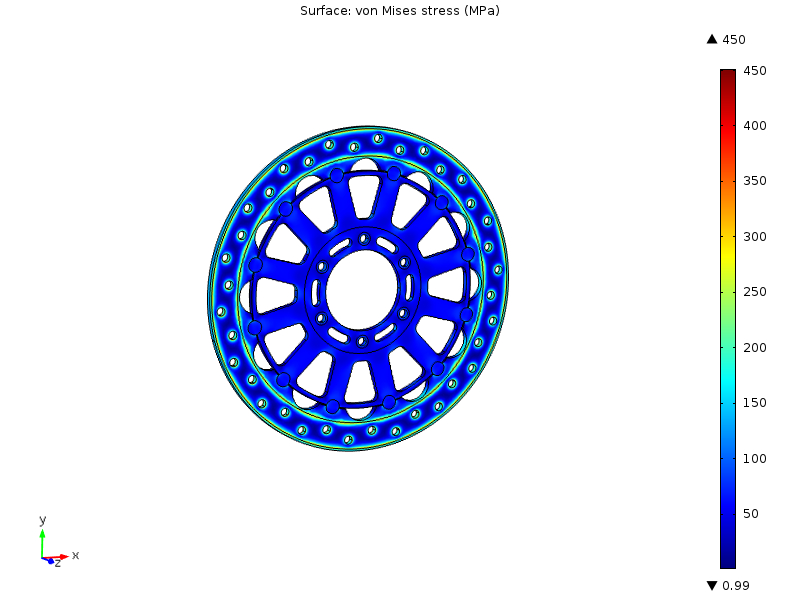

I want to apply a moment on the swept area of the brake pad. The moment is caused by a resulting friction force during braking. I have tried using the Rigid Connector, but as anticipated I get a high stress concentration around the edges. How do i apply a moment to a surface and avoid the stress concentrations around the swept area edges? I have attached a sample model of my problem and a snapshot of the calculated von Mises stress with my current setup.
Thanks in advance!
/Morten R. Drost
I am trying to model a brake disc in terms of thermal stress during a braking procedure.
I have the thermal part of the simulation down, but I am having trouble with the Structural Mechanics part.
I want to apply a moment on the swept area of the brake pad. The moment is caused by a resulting friction force during braking. I have tried using the Rigid Connector, but as anticipated I get a high stress concentration around the edges. How do i apply a moment to a surface and avoid the stress concentrations around the swept area edges? I have attached a sample model of my problem and a snapshot of the calculated von Mises stress with my current setup.
Thanks in advance!
/Morten R. Drost
1 Reply Last Post 21 apr 2015, 12:57 GMT-4
Please login with a confirmed email address before reporting spam
Posted:
10 years ago
Can you use a boundary load and use a formula for the applied force which yields the correct moment?
